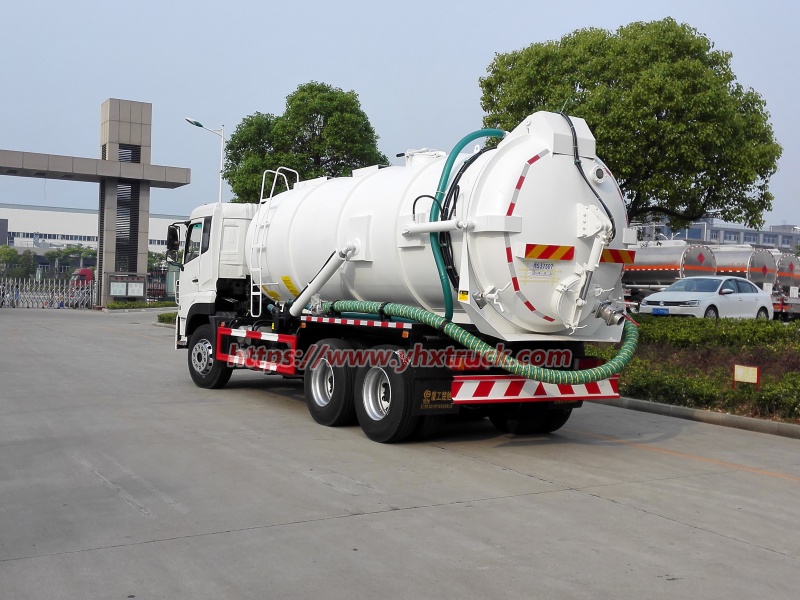

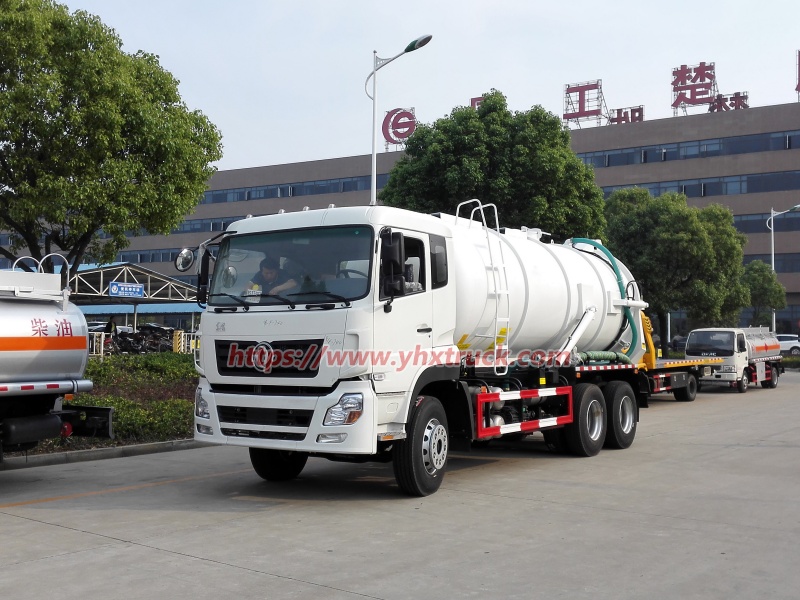

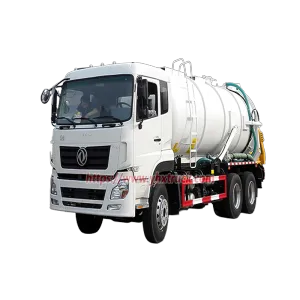

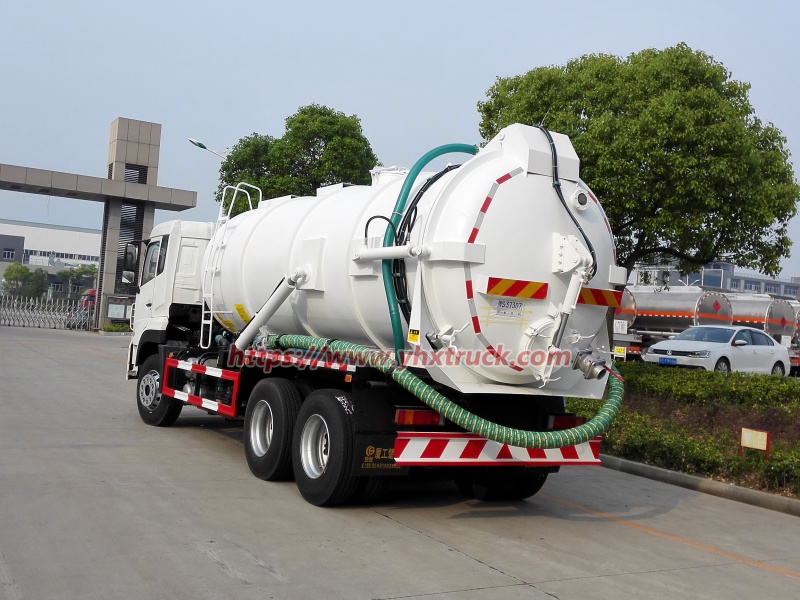

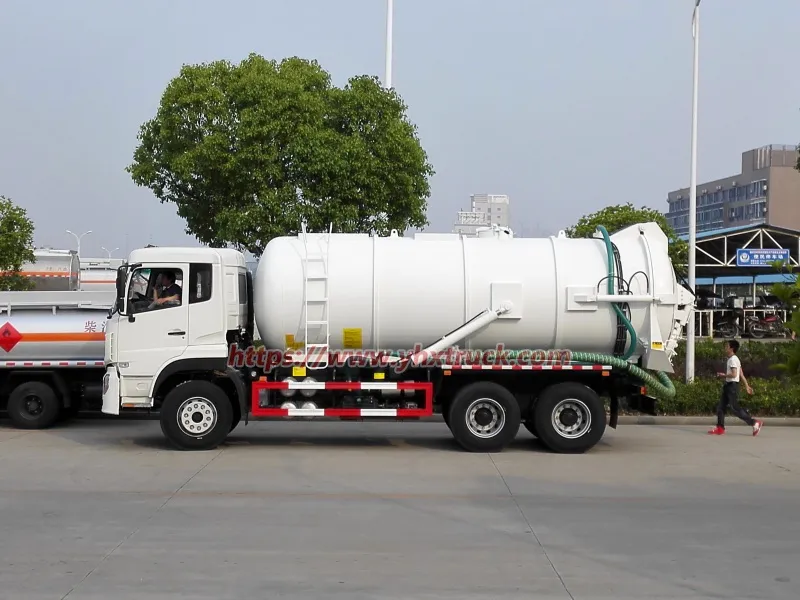

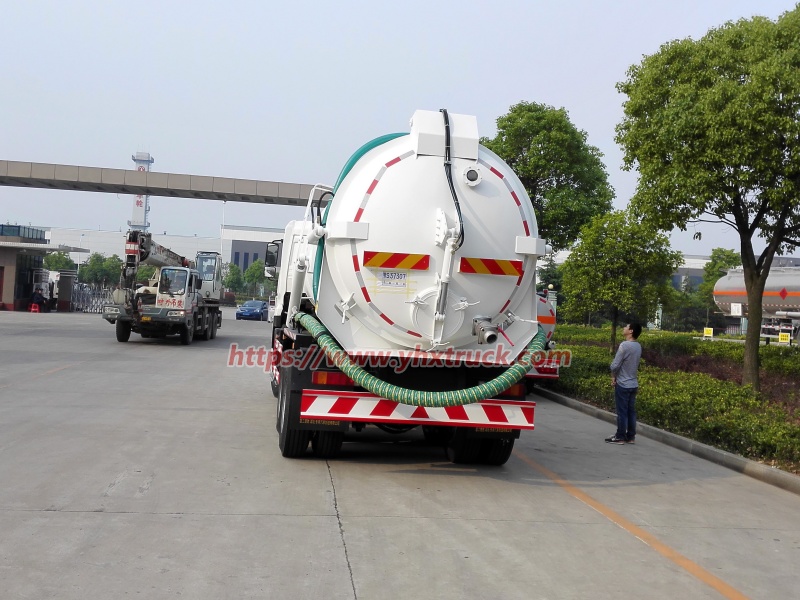

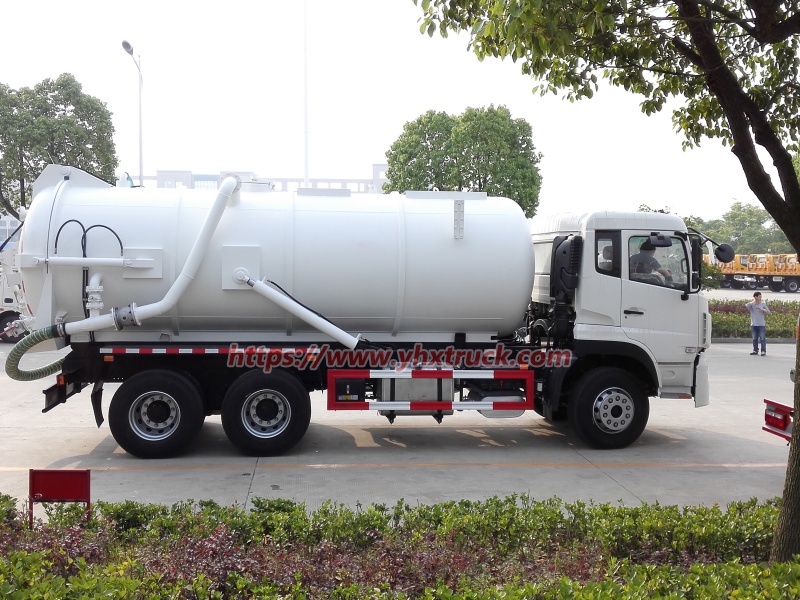

Dongfeng Kinland KL 6×4 Sewage Suction Vacuum Truck Export Professional Introduction
Table of Contents
1. Product Overview
2. Working Principle
3. Daily Application Scenarios
4. Comparison with Traditional Sanitation Vehicles
5. Buying Guide
6. Operation and Maintenance Tips
7. Frequently Asked Questions
Conclusion
1. Product Overview
Core Product Keywords: Dongfeng Kinland KL 6×4 Sewage Suction Vacuum Truck, Vacuum Sewage Truck, Kinland KL Heavy-duty Sanitation Vehicle, Sludge Suction Equipment, Large-load Sewage Disposal Truck.
Vacuum sewer cleaner truck (commonly known as Vacuum Sewage Truck) is a special sanitation vehicle equipped with vacuum pump, used to suck, transport and discharge sewage, sludge, mud and wastewater.
A Vacuum sewer cleaner truck is a dedicated municipal sanitation vehicle designed with a high-performance vacuum pumping system. It creates negative pressure inside the sealed tank to suction sewage, sludge, slurry, sewage waste and other liquid-solid mixtures from sewers, septic tanks, drainage pipes and sewage pits. The collected waste is stored in the tank and transported to designated treatment areas for unloading. This vehicle is widely applied in urban sanitation, environmental protection, municipal engineering and rural sewage treatment.
Body Structure Description
Its storage tank is constructed with thickened high-strength carbon steel integrated stamping and welding structure, adopting integral sealing and pressure-resistant design to bear negative pressure suction and hydraulic discharging.
Core Advantages
1. High working efficiency：Adopts vacuum negative pressure suction mode, with fast suction and discharge speed, which can quickly clean sewage, sludge and blockages.
2. Wide application range：Suitable for sewer, septic tank, sewage pit and other scenarios, capable of handling various liquid and solid mixed wastes.
3. Good sealing & environmental protection：The fully sealed tank avoids leakage and odor overflow, reducing secondary pollution.
4. Flexible & labor-saving：Integrates suction, storage and transportation, reducing manual operation and lowering labor costs.
5. Stable performance：Equipped with mature vacuum and hydraulic systems, with stable operation and long service life.
2. Working Principle
The complete working system of Dongfeng Kinland KL
6×4 Sewage Suction Truck consists of three core modules: mature Dongfeng Kinland KL 6×4 heavy-duty chassis power system, industrial-grade vacuum pumping assembly and pressure-resistant fully sealed storage tank.
After engine startup, the power take-off extracts power from original Dongfeng Kinland KL heavy-duty chassis to drive the vacuum pump to run continuously. The vacuum pump discharges air inside the sealed tank to form stable negative pressure. Relying on atmospheric pressure difference, all kinds of sewage, sludge, slurry and liquid-solid mixed waste are automatically sucked into the storage tank from sewers, septic tanks, drainage pipes and sewage pits.
Benefiting from integral pressure-resistant and sealing structure, the thickened carbon steel tank can bear long-term negative pressure operation and prevent sewage leakage and odor overflow. After waste collection is completed, operators control the hydraulic system to finish automatic unloading. The whole process realizes mechanized integration of suction, storage, transportation and discharging. Equipped with deluxe Kinland KL driving cab and heavy-duty 6×4 drivetrain, the truck features stronger bearing capacity, stable power output and excellent cross-country performance, adapting to heavy-load continuous sanitation operation.
3. Daily Application Scenarios
Urban Municipal Sanitation: City sewer dredging, drainage pipeline blockage removal, public septic tank and sewage pit regular cleaning
Environmental Protection Projects: Polluted domestic sewage disposal, urban black-odor river remediation, water body sludge cleaning
Municipal Engineering Operation: Construction site wastewater and mud disposal, foundation pit sewage suction
Rural Sewage Treatment: Village domestic sewage collection, rural ditch desilting, decentralized sewage disposal
Public Facility Maintenance: Park, scenic spot and residential community sewage pipeline daily maintenance
4. Comparison with Traditional Sanitation Vehicles
Vs Manual Sewage Cleaning: Traditional manual dredging relies on handwork and simple pumping tools, featuring low suction efficiency, huge labor consumption and serious odor leakage, causing urban secondary pollution. This Dongfeng Kinland sewage suction truck adopts full-mechanical operation, saving labor cost and optimizing working environment.
Vs Ordinary Water Transport Trucks: Common
Water Tank Trucks only support simple liquid transportation, without negative pressure suction function, unable to dispose viscous sludge and solid-liquid mixed waste. This professional Dongfeng Kinland sewage suction truck equips dedicated industrial vacuum system, integrating suction and transportation functions to meet comprehensive sanitation demands.
Vs 4×2 Medium-duty Sanitation Trucks: Ordinary 4×2 sewage suction trucks have limited load-bearing capacity and small tank volume, unable to cope with large-scale dredging and heavy sludge disposal tasks. This Dongfeng Kinland KL 6×4 heavy-duty model owns stronger chassis bearing force and larger tank capacity, boosting single-time working efficiency, suitable for heavy-load and large-volume sanitation projects.
Vacuum sewer cleaner truck |
General | Chassis Brand | Dongfeng |
| Overall Dimension(L×W×H) | Approx 9800×2600×3800mm (customizable for different tank capacity) |
| GVW / Kerb Weight | 25000kg / approx 12000kg |
| Drive Orientation | Left-hand Drive (LHD) |
Cab | Cab Type | High-roof Sleeper Cab (Row-and-a-half) |
| Cab Capacity | 3 seats (1 driver + 2 passengers) with rear sleeper berth |
| Air Conditioner | Standard equipped |
| Power Windows | Standard equipped |
| Central Lock | Standard equipped |
Engine | Fuel Type | Diesel |
| Engine Brand | Dongfeng Cummins (Weichai alternative optional) |
| Rated Power | 340-380HP/250-279kW |
| Displacement | 10-11L |
| Emission Standard | Euro2/Euro3/Euro5/Euro6 optional |
Chassis Parameter | Drive Type | 6×4 Rear Double Axle |
| Transmission | Fast 12-speed manual gearbox with PTO interface |
| Wheelbase/No.of axle | 4350+1350mm / 3 axles |
| Tyre Specification | 12R22.5 heavy-duty radial tires |
| Tyre Number | 10pcs + 1 spare tyre |
| Max Speed | 90km/h |
| Paint | Standard: white cab + customized superstructure color |
Superstructure | Tank Body Capacity | 18000Liters (customizable) |
| Tank Body Material | 5-6mm thick Q235B high-strength carbon steel, fully welded construction; 304 stainless steel optional |
| Tank Body Structure | Horizontal cylindrical tank, with multi-group anti-wave baffles inside, reinforced dished tank head |
| Sewage Suction Pump | Domestic famous brand vacuum suction pump (imported brand optional) |
| Pump Performance | Max vacuum degree ≥-0.09MPa, max suction depth ≥6m, stable large-flow suction, low noise |
| Hydraulic System | Domestic brand hydraulic pump & valves, working pressure 16-20MPa |
| Control Mode | In-cab manual lever control with safety interlocks; optional wireless remote control |
| Discharge Function | Hydraulic lifting tank body (max lifting angle ≥45°), hydraulic opening rear tank cover with high-density silicone sealing ring |
| Standard Accessories | Anti-overflow valve, sight glass window, 8m anti-wear suction hose, stainless steel filter screen, built-in flushing pipe, bottom drainage valve, safety railing & climbing ladder |
| Anti-corrosion | Epoxy primer + weather-resistant finish paint, anti-rust treatment for all metal parts |
5. Buying Guide
For overseas municipal sanitation departments, engineering contractors and sanitation fleet purchasers, please check core configurations before procurement:
Genuine Dongfeng Kinland KL 6×4 Chassis: Professional heavy-duty sanitation chassis, high-torque engine, ultra-strong load-bearing structure, stable power output, adapted to harsh working conditions; equipped with global after-sales spare parts network, cutting down overseas maintenance risks.
Integrated Pressure-resistant Storage Tank: Thickened high-strength carbon steel tank with integrated stamping and welding technology, integral pressure-resistant and sealing design, durable structure, adapting to long-time vacuum working conditions.
Mature Vacuum & Hydraulic System: Matched reliable vacuum pump and supporting hydraulic components, stable operation, low failure rate, easy overhaul and long service life.
Complete Export Certification: Standard factory refitting, providing full set of customs clearance documents, supporting overseas government bidding and bulk cross-border delivery.
6. Operation and Maintenance Tips
Standardized operation and routine maintenance can effectively cut down vehicle failure rate and prolong service life:
6.1 Daily Operation Specifications
Inspect tank sealing status, vacuum pipeline and hydraulic connection parts before vehicle ignition
Test vacuum pump operating condition to ensure stable negative pressure output before formal work
Prohibit sucking oversized hard sundries and gravel to prevent pipeline blockage and vacuum component abrasion
Stop the vehicle completely before hydraulic unloading operation to avoid hydraulic system malfunction
Clean tank interior and residual pipelines after daily work to reduce corrosive dirt deposition
6.2 Regular Maintenance Advice
Clean vacuum pump and internal pipelines monthly to maintain stable suction efficiency
Check tank welding seams and sealing strips quarterly, repair tiny gaps to prevent air and liquid leakage
Lubricate hydraulic parts regularly to guarantee flexible discharging action
Replace vacuum pump dedicated oil periodically to stabilize overall system performance
Follow official Dongfeng Kinland KL chassis maintenance manual to guarantee heavy-load power stability and driving durability
7. Frequently Asked Questions
Q1: Official export name
A1: Standard export names: Dongfeng Kinland KL 6×4 Sewage Suction Vacuum Truck, Dongfeng Kinland KL Vacuum Sewage Truck, Heavy-duty Municipal Sewage Disposal Vehicle.
Q2: What working scenarios fits this heavy-duty truck?
A2: It adapts to large-scale urban sewage dredging, heavy sludge cleaning, municipal major engineering sewage disposal, suburban rugged road operation and large-scale environmental protection renovation projects.
Q3: What is the advantage of 6×4 heavy-duty layout?
A3: The 6×4 drive layout owns superior load-bearing capacity and road grip performance, suitable for muddy, bumpy and harsh road conditions; Kinland KL heavy-duty chassis delivers durable high torque power, perfectly satisfying long-hour and heavy-load sanitation operation demands.
Q4: Can the sealed tank avoid secondary pollution?
A4: Yes. The thickened carbon steel tank adopts integrated stamping welding and full-sealing design, which blocks sewage leakage and odor overflow thoroughly, fully compliant with global environmental protection requirements.
Q5: Is this truck suitable for bulk overseas procurement?
A5: Definitely. Supported by reputable Dongfeng Kinland chassis, stable vacuum hydraulic system and standardized sealed tank body, the vehicle features low breakdown rate and affordable procurement cost. It is the priority option for municipal sanitation bidding and bulk overseas sanitation procurement.
Conclusion
Dongfeng Kinland KL 6×4 Sewage Suction Vacuum Truck is a heavy-duty, high-efficiency export sanitation vehicle customized for large-scale global municipal sewage disposal demands. Equipped with original Dongfeng Kinland KL heavy-duty chassis and industrial vacuum system, it integrates sewage suction, sealed transportation and hydraulic automatic discharging functions.
Adopting thickened carbon steel integrated stamping welded storage tank, cooperating with stable hydraulic system and five core advantages, this vehicle solves insufficient load capacity and poor road adaptability defects of medium-duty sanitation vehicles. With rugged Kinland KL heavy-duty chassis, powerful suction performance and sealed eco-friendly design, it is the priority heavy sanitation equipment for large municipal projects, environmental protection groups and overseas government bulk procurement.
