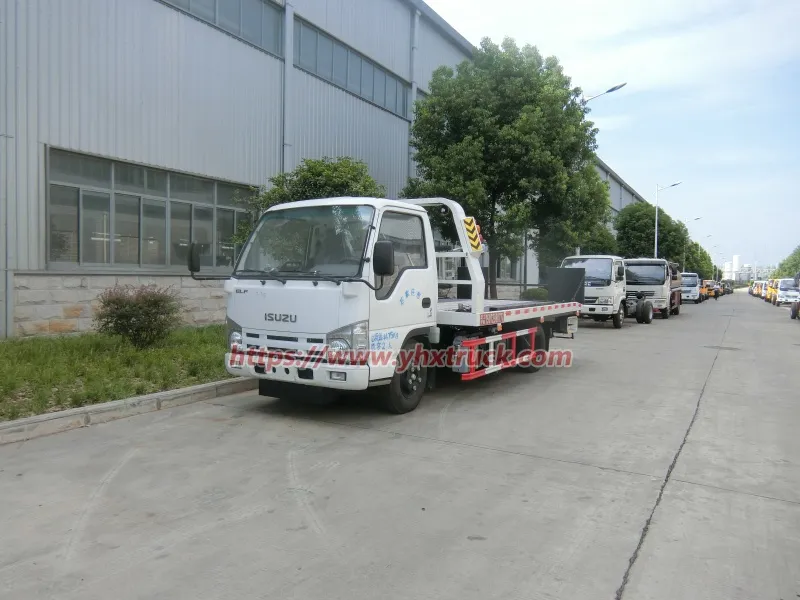

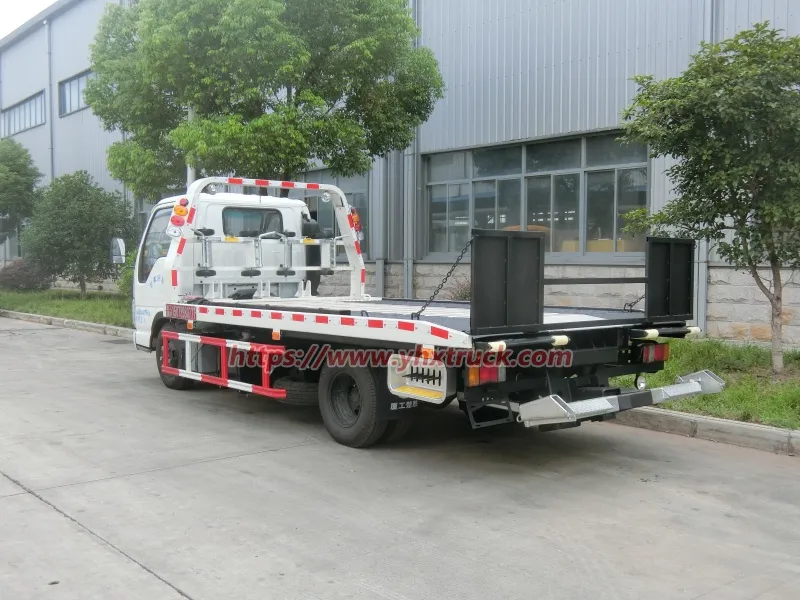

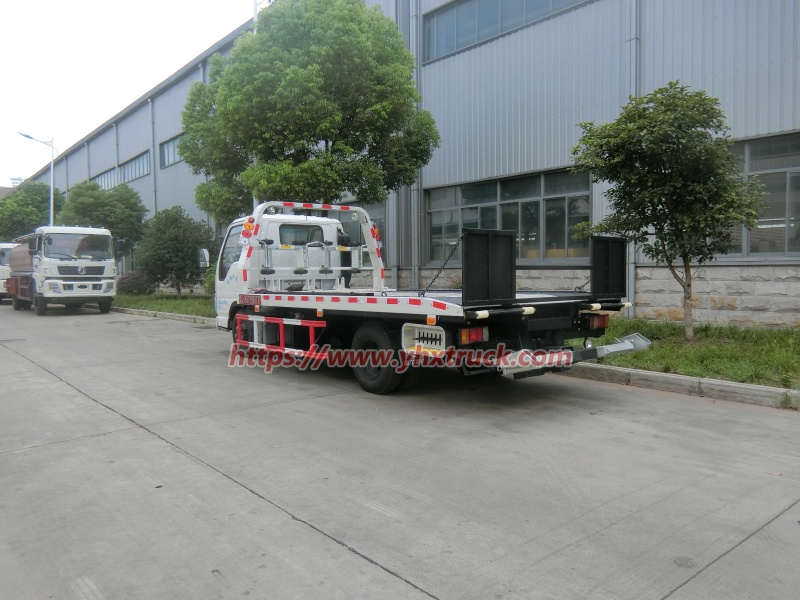

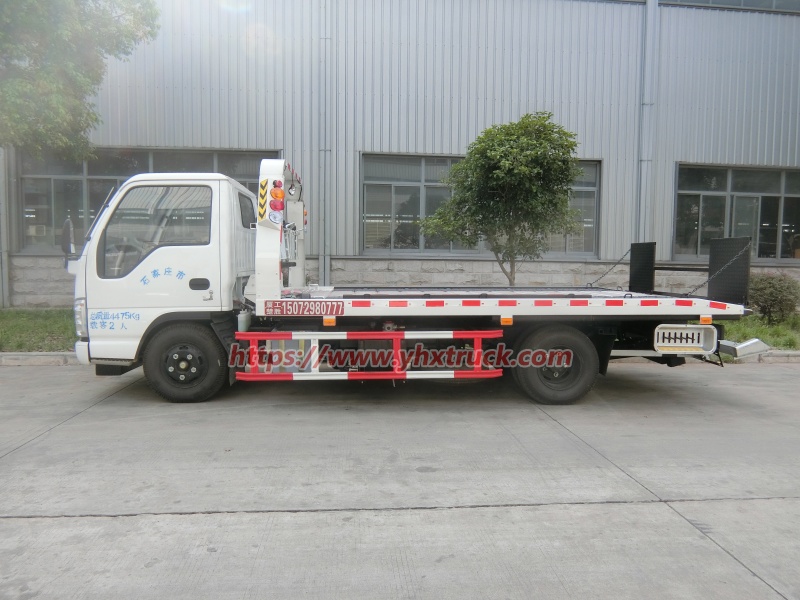

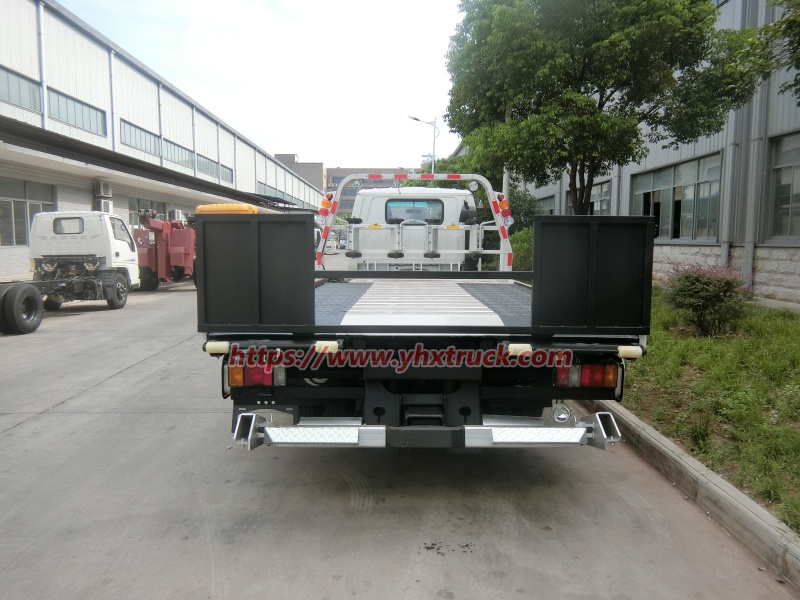

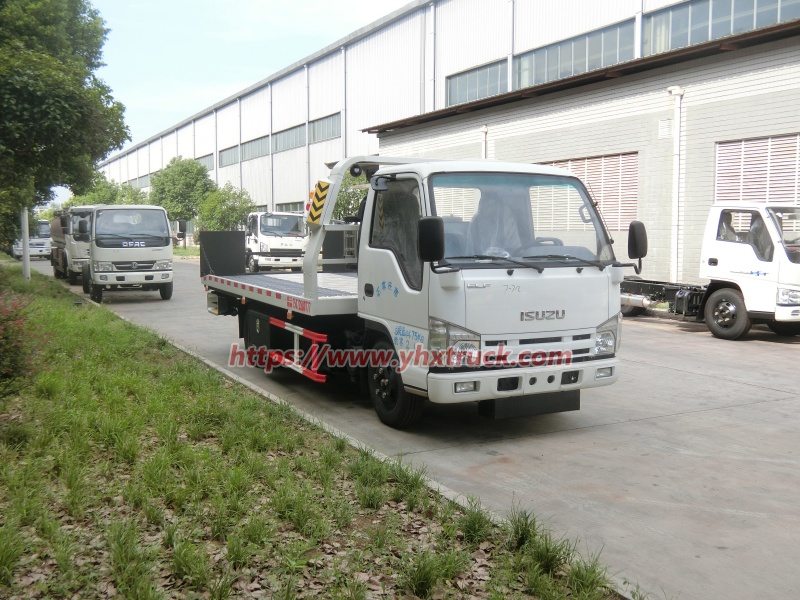

ISUZU 100P 3 Ton Flatbed
Road Wrecker Truck – 3000kg Hydraulic Lifting Light-Duty Rescue Tow Truck for Urban Road Clearance
Introduction: Why Light-Duty Flatbed Wreckers Are Essential for Urban & Highway Daily Rescue
With the continuous growth of urban vehicle volume and global road traffic flow, minor vehicle breakdowns, small traffic accidents and scattered road obstacles have become common problems in municipal road operation and highway daily maintenance. Most urban rescue teams, parking management companies and road sanitation departments are faced with a dilemma: Heavy-duty large
Wrecker Trucks are bulky, inflexible and costly for daily light rescue work, while ordinary simple tow trucks have unstable performance and incomplete safety configurations.
As a classic export-grade light-duty rescue equipment, the ISUZU 100P 3 Ton Flatbed Road Wrecker Truck perfectly solves the above pain points. Built on the authentic ISUZU 100P 4×2 mature chassis, this
Hydraulic Road Recovery Vehicle features a maximum 3000kg lifting and towing capacity, flexible body maneuverability and stable full hydraulic working performance. It is specially designed for urban small vehicle rescue, highway minor accident clearance and daily road obstacle removal, and has become the most cost-effective mainstream model for global light-duty road rescue scenarios.
Combined with long-term overseas equipment sales and on-site rescue practical experience, this article comprehensively sorts out its product overview, hydraulic working principle, core application scenarios, model competitive advantages, professional purchasing guidelines and standardized operation & maintenance skills.
Table of Contents
1. Product Overview of ISUZU 100P 3 Ton Flatbed Road Wrecker Truck
2. Working Principle of Full Hydraulic Flatbed Rescue System
3. Real Application Scenarios in Daily Road Rescue Operations
4. Comparison with Traditional Ordinary Wrecker Trucks
5. Buying Guide: How to Choose a Qualified Export Light-Duty Wrecker
6. Practical Operation & Routine Maintenance Tips
7. Frequently Asked Questions
1. Product Overview of ISUZU 100P 3 Ton Flatbed Road Wrecker Truck
The ISUZU 100P 3 Ton Flatbed Road Wrecker Truck is an export-standard light-duty road rescue tow truck, independently developed and customized for urban and highway daily light rescue work. Adopting the original authentic ISUZU 100P 4×2 light-duty chassis, the vehicle is equipped with a high-efficiency diesel power assembly and a complete set of professional hydraulic flatbed lifting and towing system, with a stable 3000kg maximum hydraulic lifting and towing capacity. It integrates flexible operation, stable hydraulic performance and comprehensive safety protection design, fully meeting the frequent and diversified daily road rescue demands.
In terms of chassis and power configuration, this urban obstacle clearance truck is fitted with a high-efficiency fuel-saving diesel engine and stable manual gearbox, matched with wear-resistant thickened tires and a durable suspension system. Equipped with hydraulic power steering and full air brake system, it delivers reliable and stable power output while ensuring excellent fuel economy, adapting to long-time continuous urban patrol rescue and highway breakdown rescue work. The humanized driving configuration greatly improves the comfort of long-shift operation for rescue workers.
In terms of rescue superstructure configuration, the truck adopts an integrated high-strength manganese steel flatbed platform, which features excellent pressure resistance, anti-wear and anti-deformation performance. Supporting full flatbed tilting, integral vehicle lifting and traction dragging functions, it is perfectly applicable for sedans, SUVs, light vans and various small faulty vehicles. The mature full hydraulic drive system is equipped with high-precision hydraulic cylinders and balance valves, realizing jitter-free stepless speed regulation for all rescue actions. Matched with a lightweight high-efficiency hydraulic winch, it greatly improves the efficiency of faulty vehicle resetting and road obstacle clearance.
In terms of operation and safety configuration, the vehicle supports on-board manual operation and wireless remote dual control modes. It is equipped with complete professional rescue accessories including high-strength towing brackets, durable tension binding belts and anti-slip positioning stoppers. Cooperated with high-brightness warning lights and professional rescue horn, it can effectively warn surrounding vehicles and pedestrians, ensuring safe and standardized on-site rescue construction.
Core Key Advantages:
Authentic ISUZU Mature Chassis: Original 100P 4×2 light-duty chassis, fuel-efficient, stable and durable, with low failure rate and wide global after-sales coverage
3000kg Standard Rescue Capacity: High-strength manganese steel integrated flatbed, supporting lifting, tilting and traction of all kinds of small light vehicles
Stable Full Hydraulic System: Precision hydraulic cylinder + balance valve design, stepless speed regulation, no jitter or pressure loss during operation
Dual Control & Complete Safety Configuration: Manual + wireless remote dual operation, matched with full set of rescue accessories and warning devices
High Flexibility & Cost Performance: Compact body, flexible driving in urban narrow roads, low purchase and operating cost for daily rescue
Standard Export Compatibility: Full export-grade configuration, suitable for urban road rescue projects in various overseas regions
2. Working Principle of Full Hydraulic Flatbed Rescue System
The core working principle of the ISUZU 100P light-duty wrecker truck relies on the perfect matching of mature chassis power and optimized full hydraulic linkage system, realizing integrated automatic operation of flatbed tilting, vehicle lifting, traction resetting and obstacle clearance for small faulty vehicles.
The high-efficiency diesel engine outputs stable power, which is transmitted to the hydraulic system through the power take-off. The high-precision hydraulic cylinder and balance valve form a stable closed hydraulic loop, which can precisely control the oil pressure and flow rate. The whole process of flatbed tilting, vehicle lifting and traction dragging realizes smooth stepless speed regulation, completely avoiding jitter, pressure loss and unstable shaking problems of ordinary modified hydraulic systems, effectively protecting faulty vehicles from secondary damage during rescue.
When completing vehicle recovery, the hydraulic system drives the flatbed to tilt and land stably. After the faulty vehicle is fixed firmly with high-strength binding accessories, the lightweight hydraulic winch provides stable and uniform traction to complete vehicle resetting and boarding. Supported by dual control modes of on-board manual operation and wireless remote control, operators can flexibly adjust rescue actions according to on-site road conditions and vehicle types, efficiently completing daily road breakdown rescue and obstacle clearance work with high safety and accuracy.
3. Real Application Scenarios in Daily Road Rescue Operations
Benefiting from its compact flexible body, stable hydraulic rescue performance, low operating cost and comprehensive light-load rescue capability, the ISUZU 100P 3-ton
Flatbed Wrecker Truck is widely used in urban and highway daily light rescue scenarios, becoming the mainstream equipment for municipal rescue teams and parking management companies:
Road rescue and recovery of faulty sedans, SUVs, light vans and small passenger vehicles
Rapid clearance of minor traffic accident vehicles on urban roads, community roads and urban viaducts
Daily road obstacle clearance, abandoned vehicle removal and road surface cleaning and sorting work
Fixed-point rescue and vehicle management for urban parking lots, commercial parks and scenic spots
Daily patrol rescue and emergency disposal of minor faults on urban trunk roads and provincial highways
In actual urban rescue work, heavy-duty wrecker trucks are bulky and inflexible, unable to pass through urban narrow roads and community lanes, with high operating costs. Simple small tow trucks have single functions and unstable performance, which cannot guarantee rescue safety. The ISUZU 100P light-duty flatbed wrecker perfectly makes up for the market gap. It can flexibly adapt to complex urban road conditions, complete various light rescue tasks efficiently, and greatly improve the efficiency of urban road traffic emergency disposal.
4. Comparison with Traditional Ordinary Wrecker Trucks
To help global buyers intuitively recognize the product advantages of this export-grade ISUZU flatbed wrecker, I have made a comprehensive multi-dimensional comparison with traditional simple tow trucks and modified light-duty wreckers:
Full Core Configuration of ISUZU 100P 3 Ton Flatbed Wrecker Truck
Chassis & Power System
Chassis Brand: Original authentic ISUZU 100P 4×2 light-duty dedicated chassis
Power Configuration: High-efficiency fuel-saving diesel engine + stable manual gearbox
Driving Performance: Hydraulic power steering, full air brake system, wear-resistant thickened tires and durable suspension
Operating Advantage: Fuel-saving and low-noise, suitable for long-term frequent urban rescue operations
Rescue Structure & Hydraulic System
Rated Rescue Capacity: 3000kg maximum lifting and towing load
Working Platform: Integrated high-strength manganese steel flatbed, anti-deformation and wear-resistant
Hydraulic Technology: Mature full hydraulic drive + precision balance valve, stepless speed regulation without jitter
Traction Equipment: Professional lightweight hydraulic winch, matching full set of high-strength rescue accessories
Operation & Safety System
Control Mode: On-board manual operation + wireless remote dual control
Safety Device: High-brightness warning lights, rescue horn, anti-slip and anti-fall positioning accessories
Functional Advantages: Integrated lifting, tilting, traction and obstacle clearance, multi-scene adaptation
Multi-Model Competitive Advantage Comparison
Compared with traditional simple tow trucks: Ordinary small tow trucks have single rescue function, no complete hydraulic balance system, and are prone to jitter and offset during operation, which may cause secondary damage to vehicles. The ISUZU 100P flatbed wrecker adopts professional integrated flatbed design and mature full hydraulic system, with stable operation, complete functions and higher rescue safety, which can meet diversified daily rescue demands.
Compared with ordinary modified light-duty wreckers: This model adopts original ISUZU factory chassis and standardized supporting hydraulic system, rather than simple secondary modification of ordinary cargo chassis. It has more reasonable overall matching, lower failure rate, more stable long-term operation performance and longer service life. Meanwhile, it has better road flexibility and lower comprehensive operating cost, which is more suitable for large-scale fleet procurement and long-term daily rescue operation.
ISUZU 100P Road Wrecker Truck |
General | Chassis Brand | ISUZU |
| Overall Dimension | 5995mm × 2280mm × 2200mm (customizable) |
| GVW / Kerb Weight | 4495kg/ 2600kg–2800kg |
Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner |
Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine |
| Power | 98 Ps /72 KW |
| Displacement | 3000 cc |
| Emission Standard | Euro v |
Chassis | Drive Type | 4x2, left hand drive |
| Transmission | 6-speed forward & 1 reverse |
| Wheelbase/No. of axle | 4350+1350 mm / 3 |
| Tyre Specification | 700R16 |
| Tyre Number | 6 tyres and 1 spare tyre |
| Max Speed | 90 km/h |
| Paint | Metallic paint |
Superstructure | Towing Type | Wheel-lift conbined with towing boom |
| Flatbed Payload Capacity | 3 Tons |
| Flatbed Length | 4.2 M |
| Towing Capacity(kg) | 3 tons |
| Other Parts | Hydraulic pump, hydraulic motor, hydraulic oil tank, HZL hydrauliccylinders, ltaly imported multiway valve, imported balance valveand hydraulic lock, auxiliary brake hose, chain hook, lift fork, hand washing box etc. |
| Four hydraulic outriggers are equipped, stable and reliable. |
| All ther standard accessories: Tool kit ,English manual. |
5. Buying Guide: How to Choose a Qualified Export Light-Duty Wrecker
Based on years of overseas engineering machinery export and rescue equipment matching experience, I have summarized 4 core procurement standards for light-duty wrecker trucks, helping global buyers avoid mismatched models and low-quality modified equipment:
1. Match Model According to Rescue Business Scenarios
Heavy truck & large engineering vehicle accident rescue: 15–20 ton heavy-duty wrecker
Medium-sized vehicle highway rescue: 8–12 ton medium-duty wrecker
Urban small vehicle daily rescue & obstacle clearance: ISUZU 100P 3 ton flatbed wrecker (strongly recommended)
2. Prioritize Original Mature Brand Chassis
Light rescue vehicles need frequent start-stop and flexible driving. It is necessary to choose authentic ISUZU mature chassis with stable performance, fuel saving and durability. Avoid low-cost modified ordinary chassis, which are prone to power attenuation and structural failure after long-term use.
3. Focus on Complete Hydraulic Balance System
Qualified light-duty flatbed wreckers must be equipped with professional hydraulic balance valves and stepless speed regulation functions to ensure stable lifting and traction without jitter, effectively protecting rescue vehicles and faulty vehicles, and improving operation safety.
4. Confirm Export Standard Configuration
For overseas export use, confirm local road traffic rules and vehicle access standards in advance. This ISUZU 100P wrecker adopts full export-standard configuration, which can meet the daily rescue and road clearance demands of most urban markets in Southeast Asia, Africa, Central Asia and other regions.
Practical operation data shows that equipping 3-ton ISUZU light-duty flatbed wreckers for urban rescue teams can effectively reduce daily operating costs and improve rescue efficiency, with extremely high cost performance.
6. Practical Operation & Routine Maintenance Tips
Although the ISUZU 100P light-duty wrecker truck has stable performance and low failure rate, standardized daily operation and scientific routine maintenance are still key to maintaining long-term high-efficiency operation and extending service life:
Daily Operation Tips
Operate strictly within the rated 3000kg load range to avoid overloading, preventing hydraulic system pressure overload and flatbed structural deformation
Check the hydraulic oil level, pipeline tightness and winch operating status before each rescue to ensure no oil leakage and stable hydraulic pressure
Fix faulty vehicles firmly with professional tension belts and anti-slip stoppers during boarding and traction to prevent sliding and falling
Turn on warning lights and rescue horns in advance during on-site operation to remind passing vehicles and pedestrians to ensure construction safety
Operate wireless remote control slowly and stably, avoid sudden start and stop, and ensure smooth rescue actions
Regular Maintenance Advice
Replace hydraulic oil and filter elements regularly to keep the hydraulic circuit clean and ensure stable lifting and traction power
Lubricate flatbed rotating shafts, winch transmission parts and movable connection points monthly to reduce mechanical wear
Quarterly inspect the flatbed platform for deformation and looseness, and fasten all connecting bolts in time
Regularly check the chassis braking system and power assembly to ensure stable power output and reliable braking performance
Calibrate the wireless remote control device regularly to ensure sensitive and stable remote operation
With standardized daily maintenance, the service life of this ISUZU 100P 3-ton flatbed wrecker truck can reach more than 10 years, maintaining stable and efficient daily rescue performance.
7. Frequently Asked Questions (FAQ)
Q1: What is the maximum rescue load of this ISUZU 100P wrecker truck?
A1: This light-duty flatbed wrecker has a maximum 3000kg hydraulic lifting and towing capacity, which can complete safe recovery and traction of various small vehicles such as sedans, SUVs and light vans.
Q2: What are the advantages of its full hydraulic rescue system?
A2: It is equipped with high-precision hydraulic cylinders and balance valves, realizing stepless speed regulation for all rescue actions. The operation is stable without jitter or pressure loss, which can effectively protect faulty vehicles and ensure rescue safety.
Q3: What are the advantages of ISUZU 100P chassis?
A3: The original ISUZU 100P 4×2 chassis features fuel saving, low failure rate, stable power output and flexible driving performance. It is very suitable for frequent short-distance patrol and rescue operations in complex urban road environments.
Q4: Does the wrecker support dual operation modes?
A4: Yes. It is equipped with on-board manual operation and wireless remote dual control modes, which can flexibly adapt to different on-site rescue environments with high operation efficiency.
Q5: What scenarios is this 3-ton flatbed wrecker suitable for?
A5: It is widely used for urban small vehicle breakdown rescue, minor traffic accident vehicle clearance, urban road obstacle removal, and daily patrol rescue for municipal roads and parking lots.
Conclusion
From the perspective of professional overseas municipal rescue equipment procurement and operation, the ISUZU 100P 3 Ton Flatbed Road Wrecker Truck is a high-cost-performance, flexible and stable light-duty hydraulic road rescue vehicle.
It adopts the authentic and mature ISUZU 100P 4×2 chassis and high-efficiency fuel-saving power assembly, with flexible body trafficability and stable long-term operation performance. The integrated high-strength manganese steel flatbed and professional full hydraulic system realize stable 3000kg lifting and traction capacity, perfectly meeting the diversified demands of urban daily light rescue and road obstacle clearance. Equipped with dual control operation mode and complete safety protection and rescue accessories, it ensures efficient, safe and standardized disposal of various small vehicle faults and road obstacles.
With low purchase cost, low daily operating consumption, ultra-low failure rate and standardized export configuration, this ISUZU light-duty wrecker truck is the most ideal cost-effective equipment for overseas municipal rescue departments, parking management enterprises and urban road maintenance teams, with high practical value and long-term investment return.
