Introduction
Traditional high-altitude construction relies on manual ladders and temporary scaffolding, which suffers from low operating efficiency, poor stability and severe falling safety risks, and cannot adapt to frequent cross-site construction transfer. Ordinary single-function aerial vehicles lack auxiliary working functions, limited to simple personnel lifting, failing to meet diversified construction demands. To solve such industry pain points, we supply the export-special

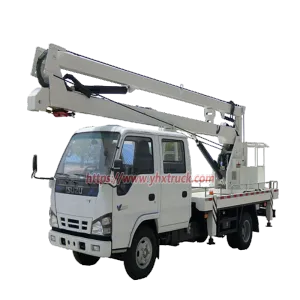

16M Hydraulic Aerial Bucket Truck. As professional customized engineering high-altitude machinery, it is equipped with dedicated hydraulic lifting working platform, with 200kg rated bucket load capacity. It perfectly replaces traditional scaffolding and ladders, drastically boosting high-altitude operation safety and construction efficiency. Featuring multi-scenario auxiliary functions and dual travel modes, this export-grade aerial vehicle fits outdoor municipal, indoor factory and building construction scenarios, fully compliant with global engineering machinery export standards.
Table of Contents
1. Product Overview
2. Working Principle
3. Daily Application Scenarios
4. Comparison with Traditional Models
5. Buying Guide
6. Operation and Maintenance Tips
7. Frequently Asked Questions
Conclusion
1. Product Overview

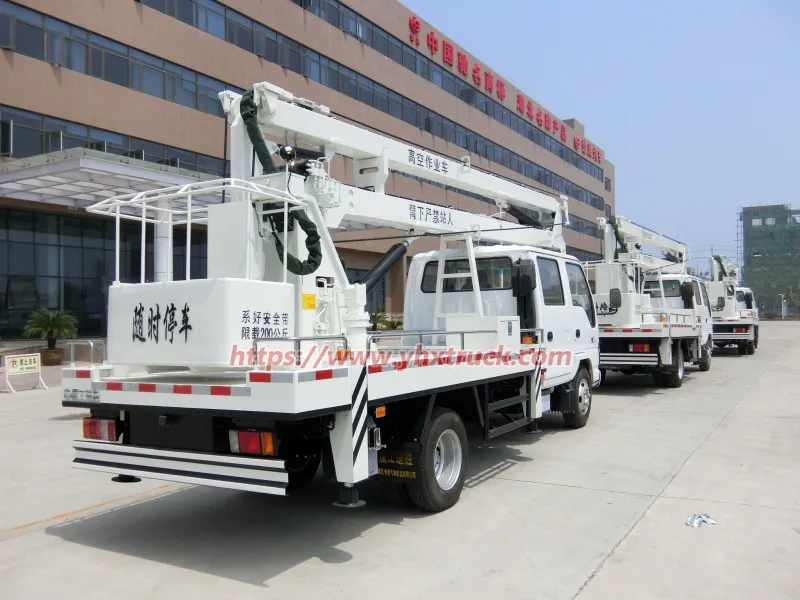

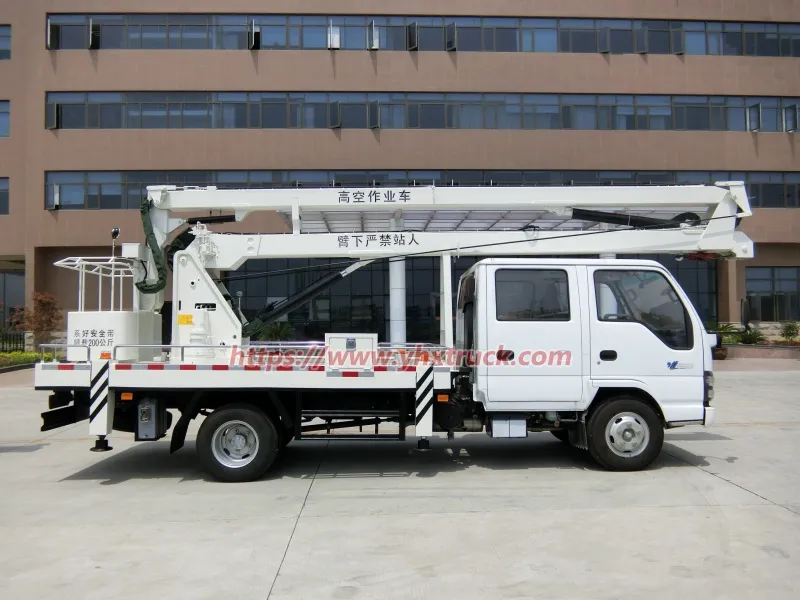

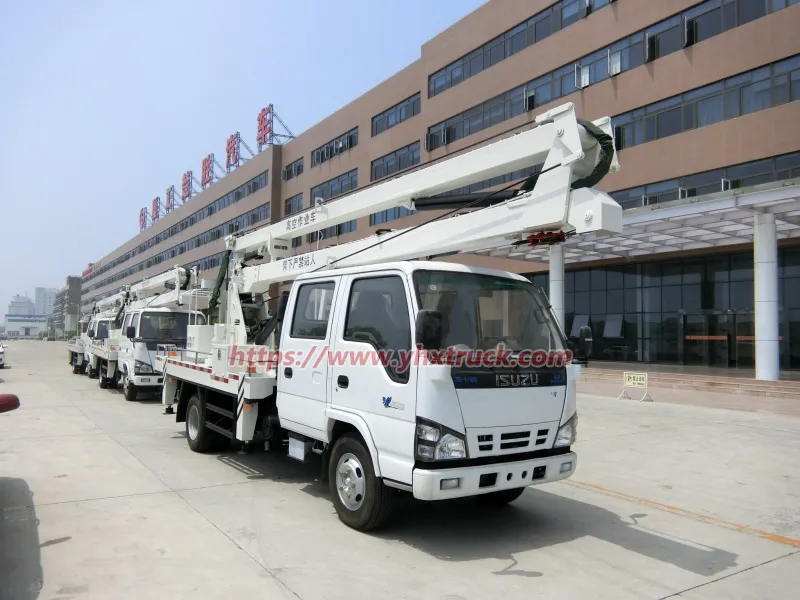

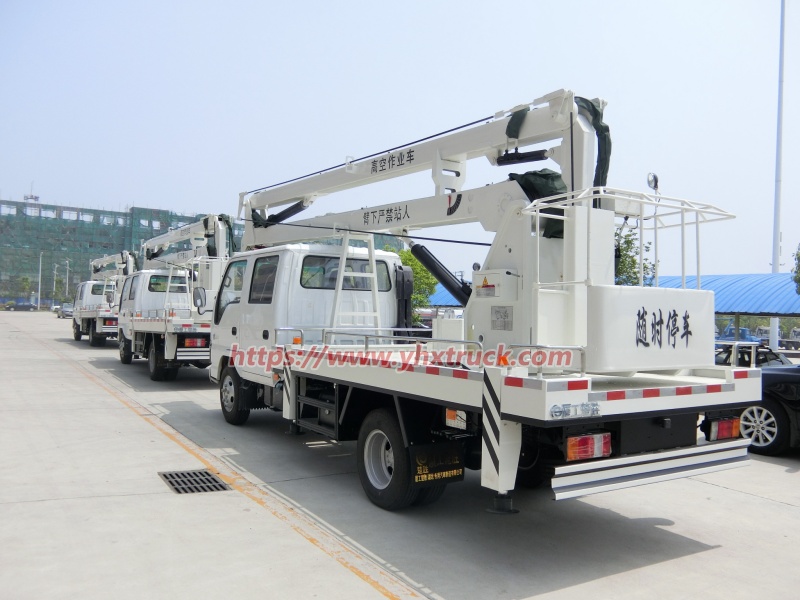

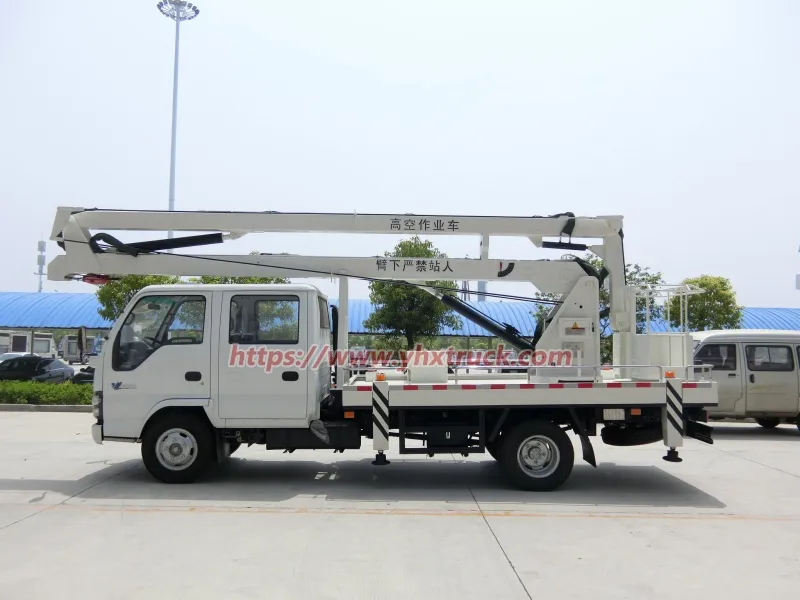

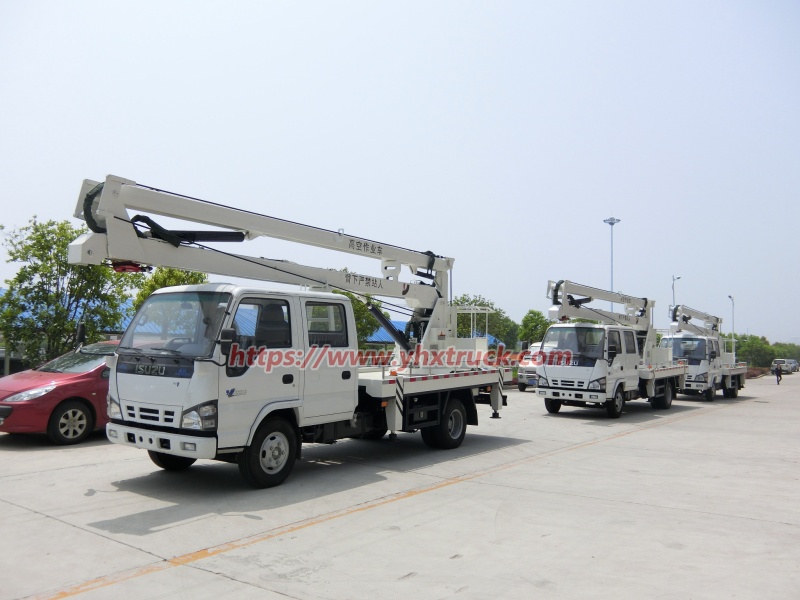

16M hydraulic aerial bucket truck is an export-oriented special engineering aerial work machine, specially equipped with integrated hydraulic lifting working platform. Its core design aims to provide stable, reliable high-altitude operating conditions for operators and lightweight construction materials, gradually replacing risky traditional scaffolding and climbing ladders. The whole machine supports 16-meter rated working height and 200kg standard working bucket capacity, matched with hydraulic telescopic boom structure and full hydraulic drive system. With simple overall structure and flexible operation, it is configurable with multiple practical auxiliary modules to realize multi-functional high-altitude operation, becoming cost-effective general engineering machinery for global construction and municipal industries.
Different from single-purpose aerial lift equipment, this hydraulic aerial bucket truck reserves diversified practical auxiliary functions to expand business boundary and improve equipment utilization rate. Firstly, it supports optional light material hoisting function: a matched small lifting hook can be installed on the boom tip, capable of hoisting lightweight pipelines, spare parts and small engineering equipment, replacing small portable cranes to cut extra equipment procurement cost. Secondly, it is equipped with full hydraulic turntable, realizing 360° left-right free rotation, adjusting working angles and positions in a large range without relocating the whole vehicle, saving on-site position adjustment time greatly.
This aerial work vehicle supports two independent travel modes to adapt to complicated working environments. The truck-mounted version is built on standard commercial chassis, running legally on public highways and realizing long-distance cross-city and cross-region transfer between construction sites, suitable for outdoor mobile high-altitude tasks. The self-propelled version includes electric-driven and diesel-driven two types, applicable to low-speed moving inside closed factories, warehouses and indoor spaces; compact self-propelled models support slight horizontal movement while keeping low lifting height, realizing continuous mobile high-altitude operation without repeated landing.
In addition, the working platform reserves universal installation interfaces for secondary refitting. Users can install auxiliary lighting fixtures, high-pressure water cleaning guns and industrial spraying equipment according to actual demands. It can be switched to professional working equipment for streetlamp night maintenance, building curtain wall dust cleaning and exterior wall paint spraying, realizing one vehicle for multiple purposes. All hydraulic pipelines adopt leak-proof sealing technology, with stable pressure output, low failure rate and convenient overseas after-sales maintenance.
Core Product Advantages
Basic High-Altitude Operation Performance：16m standard working height, 200kg stable bucket bearing capacity, dedicated hydraulic lifting platform for safe personnel operation
Replace Traditional Risky Tools：Substitute scaffolding and climbing ladders, eliminate falling hazards, improve overall construction efficiency
Optional Light Hoisting Function：Boom-tip lifting hook optional, hoist light pipes and hardware, replace miniature cranes
Omnidirectional Rotation Adjustment：360° hydraulic turntable, flexible position adjustment without whole-vehicle relocation
Dual Travel Mode Design：Truck-mounted for highway long-distance transfer; electric/diesel self-propelled for indoor & factory operation
Multi-scenario Refit Adaptability：Reserve equipment interfaces for lighting, cleaning and spraying devices, expand working functions
Export Standard Hydraulic System：Anti-leakage hydraulic assembly, steady operation, low maintenance cost and easy overseas certification
2. Working Principle
The multi-functional operation of 16M hydraulic aerial bucket truck relies on full hydraulic power linkage system, rotary bearing mechanism and dual travel power structure, realizing vehicle transferring, boom lifting, azimuth rotation and auxiliary working functions synchronously.
For power output mode: The truck-mounted version obtains hydraulic power from chassis engine power take-off; the self-propelled version adopts built-in diesel engine or lithium battery power assembly to supply energy for hydraulic station. After receiving startup instructions, the hydraulic station outputs stable pressure oil to drive telescopic boom cylinder, realizing stepless lifting to reach 16-meter maximum working height. The load-bearing working bucket bears operators and lightweight materials within 200kg rated load, keeping horizontal balance during lifting.
The bottom hydraulic turntable drives the whole upper working device to conduct 360° horizontal rotation, adjusting working azimuth flexibly without moving tires or chassis. When enabling auxiliary functions, the hydraulic system distributes partial oil supply to boom-tip lifting hook or external refitting equipment: the lifting hook realizes vertical light cargo hoisting; external lighting, water gun and spraying equipment obtain power via reserved interface to finish supporting operation. The whole hydraulic system equips pressure stabilizing valves to avoid jitter and sudden stop, ensuring smooth high-altitude actions.
3. Daily Application Scenarios
Benefiting from dual travel modes and expandable multi-functional design, this 16m hydraulic aerial bucket truck covers indoor and outdoor full-scenario high-altitude work, widely purchased by overseas construction contractors, municipal service teams, industrial factories and property maintenance companies:
Municipal routine service: Urban streetlamp overhaul, traffic sign replacement, overhead pipeline inspection, night-time road emergency maintenance
Building construction work: Exterior wall spraying, curtain wall cleaning, building outer accessory installation, high-altitude pipeline laying
Indoor factory operation: Workshop pipeline maintenance, factory ceiling lamps replacement, storage shelf high-altitude assembly
Light cargo hoisting: Construction small parts handling, ventilation pipe installation, electromechanical accessory lifting
Public engineering auxiliary: Outdoor temporary lighting, building renovation dust cleaning, engineering site high-altitude auxiliary operation
Compared with single-function aerial work equipment, this multi-purpose hydraulic bucket truck cancels repeated vehicle procurement, integrates lifting, hoisting, cleaning and lighting functions, greatly improving equipment utilization rate and cutting comprehensive operating cost for engineering enterprises.
4. Comparison with Traditional Models
Compared with scaffolding and climbing ladders: Traditional manual scaffolding requires long assembly time, poor wind resistance and easy structural collapse; simple ladders have no safety protection, causing frequent falling accidents. This hydraulic aerial bucket truck has enclosed working bucket and stable hydraulic structure, with higher safety and 3 times higher working efficiency.
Compared with ordinary single-function aerial trucks: Conventional aerial vehicles only support personnel lifting, without material hoisting and auxiliary refitting interfaces. They cannot switch working scenarios flexibly. This 16m model integrates hoisting, rotation, cleaning and lighting expansion functions, realizing one machine for multiple uses and boosting profit margin.
Compared with pure self-propelled aerial equipment: Full self-propelled aerial lifts are limited to indoor short-distance movement, unable to drive on highways, with poor cross-site mobility. This product adopts dual travel design, covering outdoor long-distance transfer and indoor refined operation, with wider application range.
Compared with large telescopic aerial vehicles: Large ultra-high aerial trucks have bulky volume and high procurement cost, wasting resources for medium-low altitude daily work. This 16m cost-effective model matches most conventional high-altitude tasks, with low fuel consumption and simple operation, lowering labor and equipment threshold.
Hydraulic Aerial Bucket Truck |
General | Chassis Brand | ISUZU |
| Overall Dimension | 6880x1980x3100mm |
| GVW / Kerb Weight | 6280kg / 5955kg |
Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner |
Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine |
| Power | 120Ps/88kw |
| Displacement | 2999cc |
| Emission Standard | Euro V |
Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 6-speed forward & 1 reverse |
| Wheelbase/No. of axle | 3360mm / 2 |
| Tyre Specification | 7.00R16LT |
| Tyre Number | 6 tires and 1 spare tire |
| Max Speed | 90 km/h |
| Paint | Metallic paint |
Superstructure | Max. Basket Floor Height | 16 M |
| Loading Capacity | 200 KG |
| Boom Type | The Articulated boom type, hydraulic actuated and controlled |
| Rotation Angle | 360° with base turntable |
| Control | Wireless remote control system,Control both on the ground and remote control in cage |
| Bucket | Carbon steel |
| Safety Device | Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump |
| Four hydraulic outriggers are equipped, stable and reliable. |
| All the standard accessories: Tool kit ,English manual. |
5. Buying Guide
For overseas engineering contractors, factory procurement and municipal service teams purchasing versatile aerial machinery, prioritize travel adaptability, functional scalability and hydraulic stability:
Select matched travel type：Choose truck-mounted version for cross-city outdoor engineering tasks; pick electric self-propelled version for dust-free indoor factory operation, diesel version for outdoor remote sites without power supply.
Confirm basic load parameter：Verify 200kg standard working bucket capacity, avoid overloaded and inferior bearing structure to prevent high-altitude tilting risks.
Customize auxiliary modules as needed：Add boom tip lifting hook for electromechanical installation business; reserve refitting interfaces for cleaning and spraying for building maintenance projects.
Check full-rotation mechanism：Confirm hydraulic driven 360° rotation turntable, reject manually rotated structure to reduce labor intensity and improve working efficiency.
Verify export hydraulic standard：Select leak-proof stabilized hydraulic system, guarantee overseas customs clearance qualification and convenient spare parts replacement.
6. Operation and Maintenance Tips
This 16m hydraulic aerial bucket truck adopts mature universal hydraulic components and modular assembly design, with simple mechanical structure and low daily failure rate. Standardized operation can extend service life and keep export qualification valid:
Daily Operation Specifications
Park the machine on hard horizontal ground before operation; forbid lifting work on sloped, soft ground to prevent hydraulic tilt
Do not exceed 200kg rated load of working bucket, evenly place operators and tools, prohibit eccentric load to avoid platform inclination
Run hydraulic turntable at low speed, forbid rapid reversing rotation to protect hydraulic motor and rotary bearing
Test auxiliary hoisting and external equipment interfaces before official work, cut off hydraulic power immediately once oil leakage occurs
Choose corresponding travel mode according to working sites: prohibit self-propelled mode driving on public roads to obey traffic regulations
Regular Maintenance Advice
Replace dedicated hydraulic oil every 12 months, clean oil filter regularly to prevent pipeline blockage and unsmooth boom stretching
Fill lubricating grease for rotary turntable and boom hinge joints monthly, reduce abrasion and eliminate rotation jitter
Inspect bucket welding seams and anti-slip surface quarterly, repair cracked and worn parts to ensure personnel safety
Check external refitting circuit and reserved equipment interfaces regularly, prevent line aging and interface failure
Drain residual hydraulic pressure after daily work, retract the boom completely to avoid long-term stress deformation
Routine low-cost maintenance can stabilize hydraulic performance, reduce after-sales breakdown loss, and guarantee long-term barrier-free export and local engineering qualification audit.
7. Frequently Asked Questions
Q1: What is the core positioning of this hydraulic aerial bucket truck?
A1: It is a special engineering aerial machine equipped with hydraulic lifting platform, mainly providing safe working environment for on-site personnel and light materials, replacing traditional scaffolding and ladders.
Q2: Does it support light cargo hoisting work?
A2: Yes. Partial models can be fitted with a small lifting hook on the boom tip, used for hoisting light pipes and equipment, replacing simple small cranes.
Q3: How to adjust working position flexibly?
A3: It is equipped with a hydraulic turntable to realize 360° left-right rotation, adjusting working range widely without relocating the whole vehicle.
Q4: What travel modes does this aerial vehicle have?
A4: Two optional modes: Truck-mounted type for highway long-distance cross-site transfer; electric/diesel self-propelled type for indoor and factory low-speed movement.
Q5: Can it be installed with auxiliary working equipment?
A5: Sure. The working platform can be equipped with lighting fixtures, high-pressure water guns and spraying equipment for multi-scenario high-altitude maintenance and construction.
Conclusion
The 16M Hydraulic Aerial Bucket Truck is a versatile export-grade engineering aerial work machinery, developed to solve low safety and low-efficiency pain points of traditional scaffolding and ladders. Centered on 16-meter working height and 200kg standard load capacity, it adopts full hydraulic drive system to guarantee stable and reliable high-altitude lifting performance, cutting high-altitude operation safety hazards fundamentally.
Integrating optional light material hoisting, 360° omnidirectional rotation, dual travel modes and expandable auxiliary refitting functions, this aerial bucket truck breaks the limitation of single-function aerial equipment. It covers outdoor municipal construction, building renovation and indoor factory maintenance scenarios, realizing multi-purpose with one single machine. With universal modular hydraulic parts, simple operation and low maintenance threshold, it removes overseas after-sales and export customs clearance obstacles.
Balancing economical procurement cost, diversified working performance and global export compliance, this hydraulic aerial bucket truck is practical general engineering equipment for overseas construction contractors, municipal operation departments and industrial manufacturers, helping users reduce equipment input and improve high-altitude operation revenue steadily.
