SINOTRUK HOWO 6×4 Heavy Duty
Dump Truck Export Introduction
Table of Contents
1. Product Overview
2. Working Principle
3. Daily Application Scenarios
4. Comparison with Traditional Vehicles
5. Buying Guide
6. Operation and Maintenance Tips
7. Frequently Asked Questions
Conclusion
1. Product Overview
Core Product Keywords: SINOTRUK HOWO
6×4 Dump Truck, rear eight-wheel heavy tipper, 3-axle mining dumper, heavy-duty hydraulic tipper, construction dump vehicle, muck transport truck, aggregate haulage lorry, rough road mining truck
Alternative Names: SINOTRUK HOWO 6×4 Rear
Tipper Lorry, Three-axle Heavy
Mining Dump Truck, Weichai Powered Engineering Dumper, Left-hand Drive Export Heavy Tipper
Brief Introduction
SINOTRUK HOWO 6×4
Heavy Duty Dump Truck, Cost-effective Heavy Tipper Tailored for Africa, Central Asia and Southeast Asia Heavy Engineering Transportation
Product Description
SINOTRUK HOWO 6×4 rear eight-wheel heavy dump tipper adopts 3-axle layout with dual rear drive axles, equipped with standard wheelbase 3825+1350mm, and rated GVW reaches 25000kg. It is powered by Weichai WP10 340HP inline 6-cylinder turbo diesel engine matched with Euro II mechanical injection pump, featuring high low-speed torque, strong fuel compatibility and low failure rate. It is mated with SINOTRUK 10-speed heavy manual transmission integrated with heavy-duty PTO, which can output steady power to support powerful hydraulic tipping operation.
This heavy dump truck adopts thickened double-layer riveted frame, matched with balanced heavy leaf spring suspension and 16-ton wheel-reduction rear axles fitted with differential lock, delivering excellent load-bearing capacity and off-road trafficability on mine and rough construction roads. The whole cargo box is made of wear-resistant manganese steel plate, with 8mm-thick side plate and 10mm-thick floor plate, processed by full robot welding. Equipped with front large-tonnage hydraulic cylinder, it realizes stable and fast rear tipping unloading. Full air brake, ABS and exhaust brake system jointly guarantee safe heavy-load driving. It adopts flipable wide LHD cab that can hold 3 passengers, with optional air conditioner. Complete export certification documents are fully available, and it is widely applied in mining, infrastructure, muck and aggregate transportation across overseas left-traffic markets.
Core Functions
This export-grade SINOTRUK HOWO 6×4 heavy dump truck is developed based on mature heavy-duty vehicle manufacturing technology, specially optimized for harsh working conditions such as muddy mines, bumpy construction sites and long-distance earthwork transportation. Different from fragile modified heavy tippers, it adopts factory integrated chassis and matched powertrain to avoid power mismatch and structural fracture risks; compared with overpriced European heavy trucks, it has accessible spare parts and low operating cost, fully meeting large-scale fleet procurement demands.
Adopting pure mechanical engine and transmission structure, it abandons complicated electronic control parts, adapts to inferior diesel in remote overseas regions, and greatly cuts on-site repair difficulty. Equipped with differential lock and triple safety braking system, it improves driving safety on slippery roads. Standard LHD configuration plus complete export certificates realizes barrier-free customs clearance and local registration, becoming the preferred heavy engineering vehicle for overseas engineering contractors and mining enterprises.
Product Core Functions & Advantages
1. Reliable Heavy Chassis & Low Operating Cost
Adopts mature SINOTRUK HOWO heavy chassis, supported by global abundant spare parts supply network. It has much lower maintenance cost than European heavy truck brands, effectively reducing long-term fleet operation expenditure.
2. High-adaptability Weichai Powertrain
Equipped with Weichai WP10 Euro II mechanical pump engine. It has outstanding compatibility with low-quality diesel fuel, adopts pure mechanical structure without electronic faults, simple structure and easy daily maintenance.
3. High-efficiency Hydraulic Tipping Power
Matched with original SINOTRUK 10-speed heavy transmission equipped with powerful PTO device. It outputs continuous and stable power, maintains steady lifting performance, and fits large-capacity tipper box high-frequency unloading work.
4. Reasonable Engineering Wheelbase
Adopts standard 3825+1350mm engineering wheelbase with balanced front and rear load capacity. It avoids vehicle rollover under full-load condition, perfectly applicable to mine, stone yard and heavy earthwork transportation scenarios.
5. Full Export Compliance Configuration
Supplied with complete official export certification documents. Standard LHD layout fits Africa, Central Asia, Southeast Asia left-traffic markets perfectly, realizing one-stop customs clearance and legal vehicle registration.
Structural Features
1. 6×4 three-axle, dual rear drive layout, rear eight-wheel heavy-duty structure, 25000kg GVW
2. Fixed engineering wheelbase: 3825mm+1350mm, balanced load-bearing, anti-overturning chassis design
3. Weichai WP10 340HP inline 6-cylinder turbo engine, Euro II mechanical injection pump
4. SINOTRUK 10-speed heavy manual transmission, built-in heavy-duty PTO device
5. Thickened double-layer riveted frame + heavy-duty balanced leaf spring suspension
6. 16-ton wheel-reduction rear axle with differential lock, strong rough-road passability

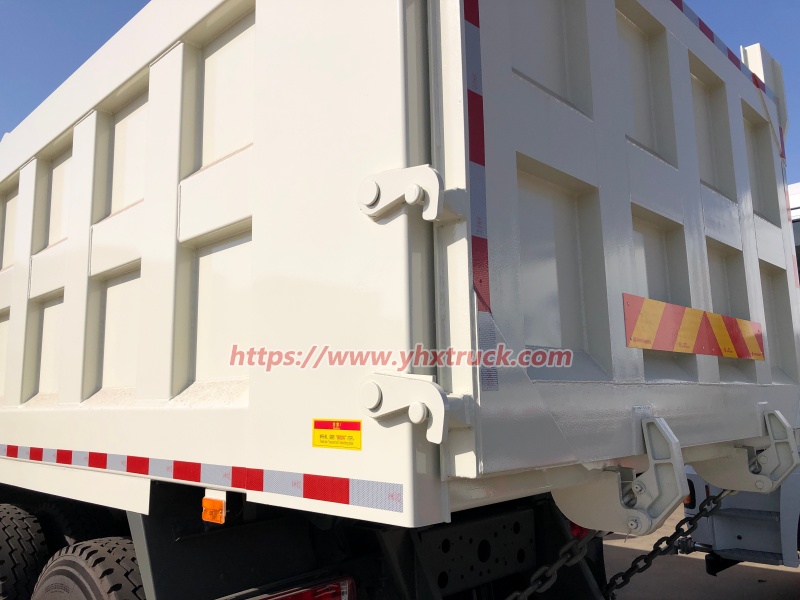

7. Manganese steel cargo box: 8mm side plate, 10mm floor plate, full robot welding
8. Full air brake + ABS + exhaust brake, 3-seater flipable LHD cab, optional A/C
Technical Parameters
Item | Specification |
Vehicle Brand | SINOTRUK HOWO |
Drive Type | 6×4 Three-axle Dual Rear Drive |
Wheelbase | 3825mm + 1350mm |
GVW | 25000kg |
Engine | Weichai WP10, 340HP Inline 6-cylinder |
Emission Standard | Euro II Mechanical Pump |
Transmission | SINOTRUK 10-speed Manual with PTO |
Rear Axle | 16-ton Wheel-reduction Axle with Differential Lock |
Cargo Box Material | Wear-resistant Manganese Steel |
Brake System | Air Brake + ABS + Exhaust Brake |
Cab | 3-seater Flipable LHD Cab, Optional A/C |
Export Document | Complete Official Certification |
2. Working Principle
The whole vehicle operating system consists of four core linkage modules: heavy-load chassis bearing system, Weichai diesel power output system, transmission power distribution system, hydraulic unloading and safety braking system.
During vehicle operation, the Weichai WP10 turbocharged engine generates steady power. Benefiting from mechanical pump structure, it maintains stable combustion output even burning low-grade diesel fuel, and releases strong low-speed torque to support full-load starting and climbing. Engine power is transmitted to SINOTRUK 10-speed heavy transmission, and the built-in heavy-duty PTO independently splits power and transmits it to the front hydraulic lifting cylinder.
Relying on matched hydraulic oil circuit, the hydraulic cylinder pushes up the manganese steel cargo box to finish rear tipping unloading; the thickened riveted frame and leaf spring suspension buffer vibration from rough mine roads, while 16-ton wheel-reduction axles with differential lock enhance wheel adhesion to prevent slipping on muddy roads.
When driving downhill or full-load traveling, full air brake cooperates with ABS and exhaust brake to cut vehicle speed stably and avoid brake failure. The flipable cab adopts hinge structure, which can be flipped upward to expose engine components for quick inspection and maintenance. With official export certification and LHD steering structure, it meets traffic laws and environmental access requirements of left-traffic overseas countries.
3. Daily Application Scenarios
Mining Transportation: Open-pit mine ore haulage, mine waste residue cleaning, mining site gravel turnover, adapt to muddy and bumpy mine roads
Large-scale Infrastructure Construction: Highway foundation earthwork transportation, municipal muck removal, dam and water conservancy project material delivery
Aggregate & Quarry Transport: Quarry stone transportation, mixing station sand and aggregate supply, heavy bulk building material haulage
Overseas Heavy Engineering Projects: Large infrastructure bidding projects in Africa, Central Asia and Southeast Asia, long-cycle heavy-load engineering operation
4. Comparison with Traditional Vehicles
Vs European Brand Heavy Dump Trucks: European heavy trucks have high vehicle price, exclusive customized spare parts and expensive after-sales maintenance. This HOWO 6×4 tipper owns global universal spare parts supply, greatly reduces procurement and repair cost, with equivalent load-bearing and power performance.
Vs 4×2 Light-duty Dump Trucks: Light-duty dump trucks have limited bearing capacity, weak off-road performance and easy chassis deformation under heavy load. This 6×4 three-axle heavy vehicle has balanced load distribution, stronger climbing capacity and longer service life, suitable for long-term heavy-load engineering work.
Vs Modified Refitted Heavy Tippers: Most refitted dump trucks lack official export certification, cannot clear customs legally; refitted PTO and hydraulic system have mismatched power, easy to cause lifting failure. This factory original vehicle provides complete qualification documents, with fully calibrated powertrain and hydraulic system for stable operation.
Vs Electronic-control Heavy Trucks: Electronic-control heavy trucks are sensitive to inferior diesel, easy to trigger electronic faults and shut down. This mechanical pump model removes complex electronic modules, adapts to poor local fuel in developing countries, with lower failure rate and simpler maintenance.
5. Buying Guide
For overseas mining companies, engineering contractors and large transportation fleets, check core configurations before purchasing:
Verify Export Compliance Documents: Confirm complete official export certification documents, support whole-process customs clearance and local vehicle registration; standard LHD layout complies with left-traffic regulations of Africa, Central Asia and Southeast Asia.
Confirm Original Heavy Chassis: Adopt genuine SINOTRUK HOWO mass-produced heavy chassis, check standard 3825+1350mm engineering wheelbase, reject refurbished and modified chassis to guarantee heavy-load safety.
Powertrain Matching Check: Inspect Weichai WP10 mechanical pump engine and original SINOTRUK 10-speed transmission, confirm integrated heavy-duty PTO function to avoid hydraulic lifting power insufficiency.
Working Condition Selection: Prioritize this model for heavy earthwork, mine and quarry transportation; equip optional A/C for high-temperature tropical regions to improve driving comfort.
After-sales Support Confirmation: Obtain global spare parts list, enjoy overseas after-sales guidance and remote technical support, shorten on-site troubleshooting cycle.
6. Operation and Maintenance Tips
6.1 Daily Operation Specifications
Check engine oil, hydraulic oil, brake air pressure and tire condition before startup, prohibit overloading beyond 25000kg GVW to prevent chassis fracture
Engage differential lock before driving into muddy and slippery mine roads, turn off differential lock when driving on flat paved roads
Activate PTO function only after full parking and handbrake locking; do not shift gears during hydraulic tipping process
Do not drive with lifted cargo box to prevent rollover and hydraulic cylinder damage
Refill local regular diesel, the Euro II mechanical pump engine is compatible with low-grade fuel to cut operating cost
Reset hydraulic cylinder and cut off PTO power thoroughly after unloading before highway driving
6.2 Regular Maintenance Advice
Clean cargo box gravel and ore residue regularly, reduce abrasion of manganese steel floor and side plates
Monthly inspect hydraulic pipeline and lifting cylinder, eliminate oil leakage risks to guarantee unloading stability
Check air brake pipeline, ABS and exhaust brake system regularly to ensure full-load braking safety
Quarterly lubricate rear axle, leaf spring suspension and transmission parts to reduce mechanical wear
Flip cab periodically to inspect engine pipeline, replace aging parts in advance to avoid sudden shutdown
Preserve export certification documents properly, use genuine SINOTRUK and Weichai universal spare parts for replacement
7. Frequently Asked Questions
Q1: Which overseas markets is this dump truck applicable to?
A1: It adopts standard LHD layout, fits all left-traffic countries, mainly including Africa, Central Asia and Southeast Asia. Supported by Euro II emission standard and complete export certification, it can complete customs clearance and local registration legally.
Q2: What are the advantages of Weichai WP10 Euro II mechanical pump engine?
A2: It has strong low-speed torque and excellent low-quality diesel compatibility. It adopts pure mechanical structure without electronic control components, hardly generates electronic faults, and supports simple on-site repair without professional testing equipment.
Q3: Why choose original SINOTRUK 10-speed transmission?
A3: It is professionally matched with heavy-duty PTO device, perfectly adapted to tipper hydraulic working condition. It outputs stable lifting power, avoids hydraulic jitter, and has low failure rate under long-term high-frequency unloading operation.
Q4: What is the benefit of 3825+1350mm fixed wheelbase?
A4: This is exclusive engineering wheelbase for heavy dump trucks, which balances front and rear axle load. It effectively reduces vehicle rollover risk under full-load condition, and improves driving stability on rough construction roads.
Q5: How about the after-sales spare parts supply?
A5: SINOTRUK has mature global spare parts supply network, spare parts are widely available locally. Compared with European brands, it cuts parts procurement cycle and long-term fleet maintenance expenditure greatly.
Conclusion
SINOTRUK HOWO 6×4 Heavy Duty Dump Truck is a practical, cost-effective export heavy tipper customized for overseas heavy-load engineering scenarios. Relying on mature SINOTRUK heavy-duty chassis technology and reliable Weichai mechanical powertrain, it solves the pain points of high-cost European trucks and fault-prone electronic-control vehicles, balancing export compliance, harsh-road adaptability and low maintenance cost.
With standard engineering wheelbase, wear-resistant manganese steel cargo box, triple safety braking system and full-set export certificates, this LHD heavy dump truck perfectly adapts to mining, municipal infrastructure and aggregate transportation businesses in Southeast Asia, Central Asia and Africa. Featuring accessible spare parts, easy maintenance and strong working durability, it is a cost-efficient and reliable heavy transport vehicle for overseas engineering and mining investors.
