Introduction
High-rise building exterior renovation, overhead power line overhaul, municipal viaduct maintenance and large venue high-altitude equipment installation demand high-working-height aerial equipment with reliable chassis power, ultra-long telescopic boom, precise hydraulic control and full-link safety interlock protection. Many low-standard aerial lifts adopt underpowered chassis, thin single-section boom and incomplete safety alarm systems, unable to stably complete 30-meter high-altitude continuous operation and carrying hidden tipping risks. To meet high-standard export procurement demands for ultra-high medium altitude construction, we supply the export-special 30M ISUZU KV100 Mobile elevating work platform truck. Built on genuine ISUZU KV100 chassis with 3815mm wheelbase and 120HP high-efficiency engine, it is equipped with full hydraulic 14-sided 6-section telescopic boom system, reaching a maximum working height of 30 meters with 200kg rated working bucket capacity. Supported by 360° full rotation, electro-hydraulic proportional precise control and multi-layer intelligent safety monitoring system, this MEWP integrates comfortable long-distance transit performance, stable ultra-high lifting capacity and full-range anti-risk protection, fully compliant with international mobile elevating work platform export standards and global high-altitude operation safety regulations.
Table of Contents
1. Product Overview
2. Working Principle
3. Daily Application Scenarios
4. Comparison with Traditional Models
5. Buying Guide
6. Operation and Maintenance Tips
7. Frequently Asked Questions
Conclusion
1. Product Overview

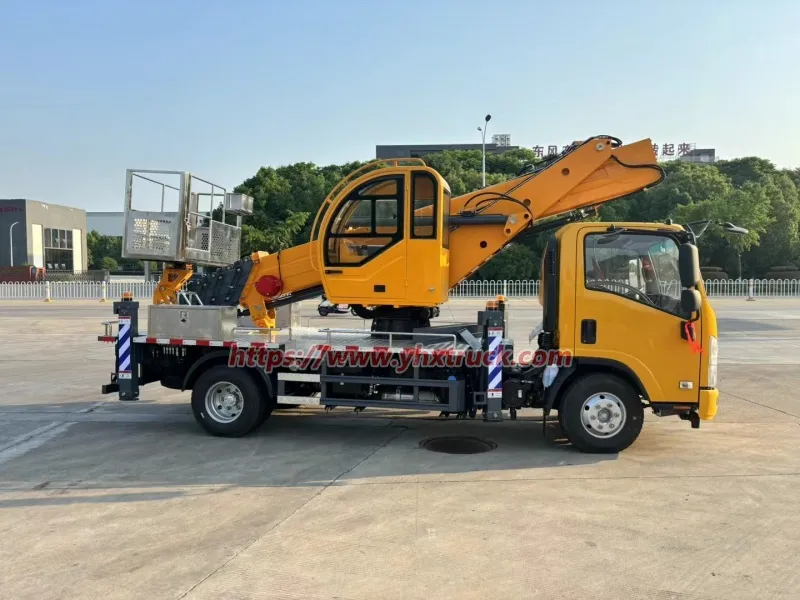

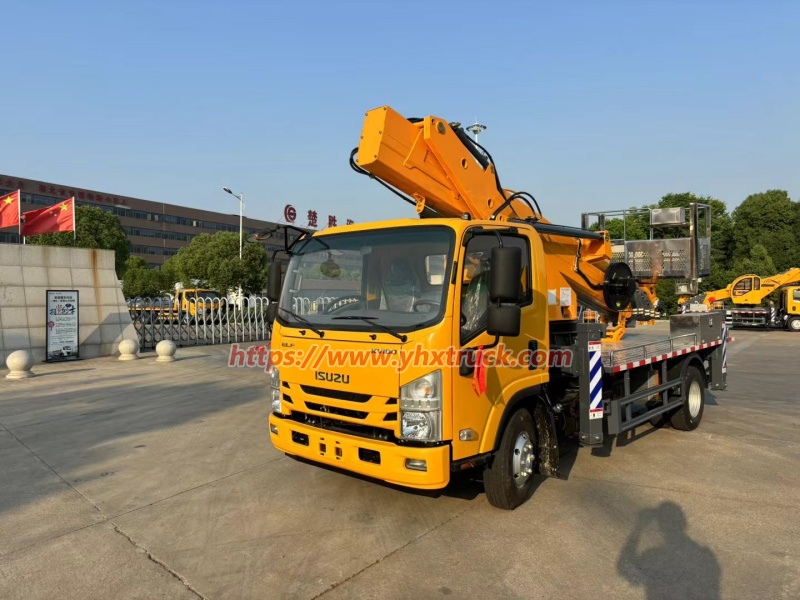

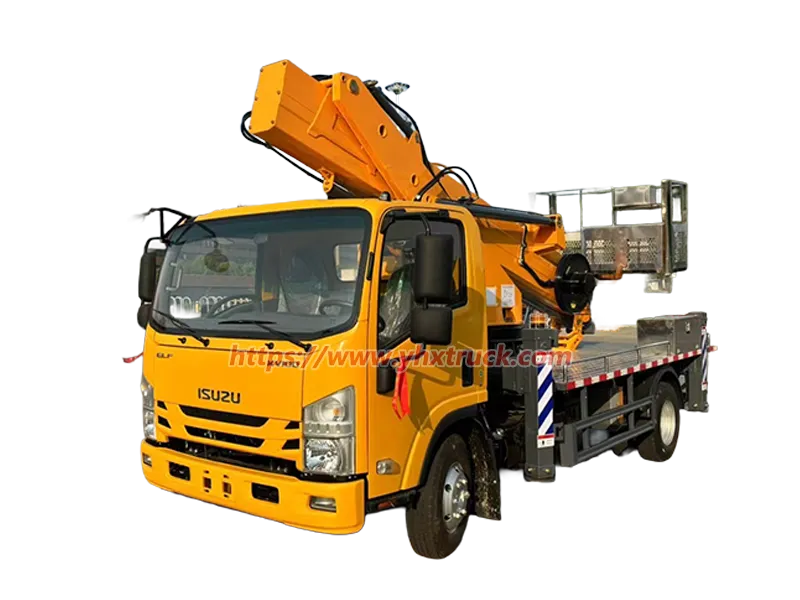

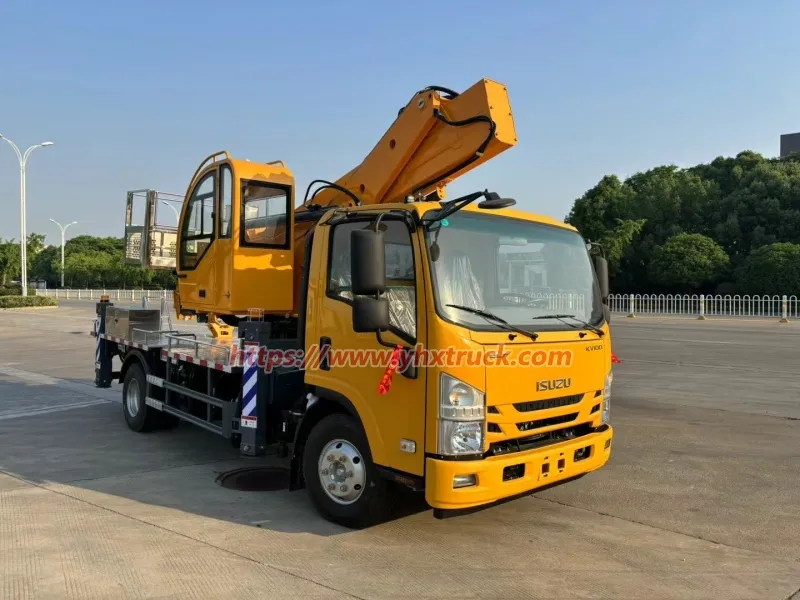

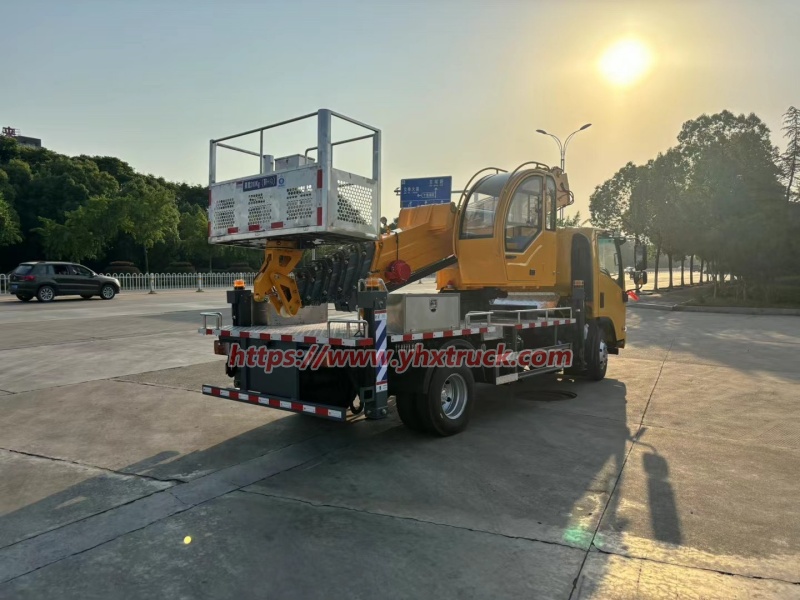

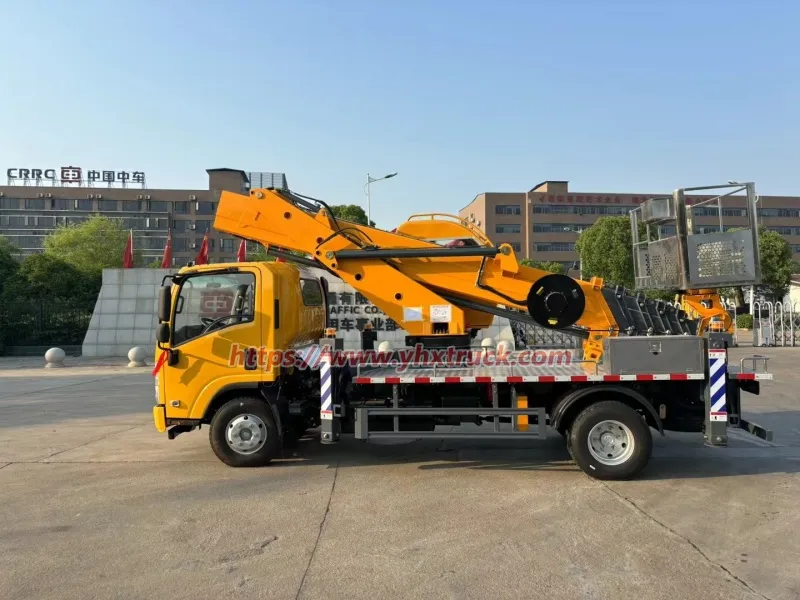

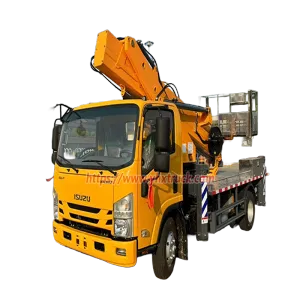

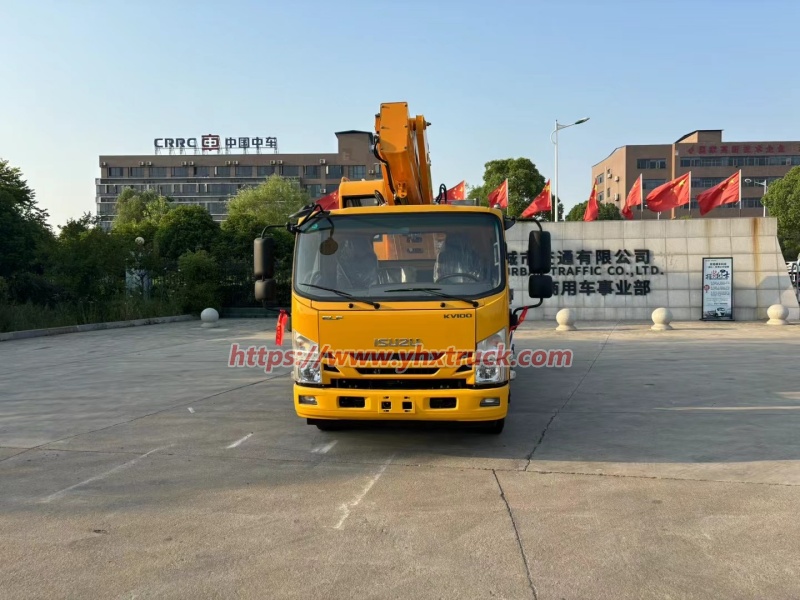

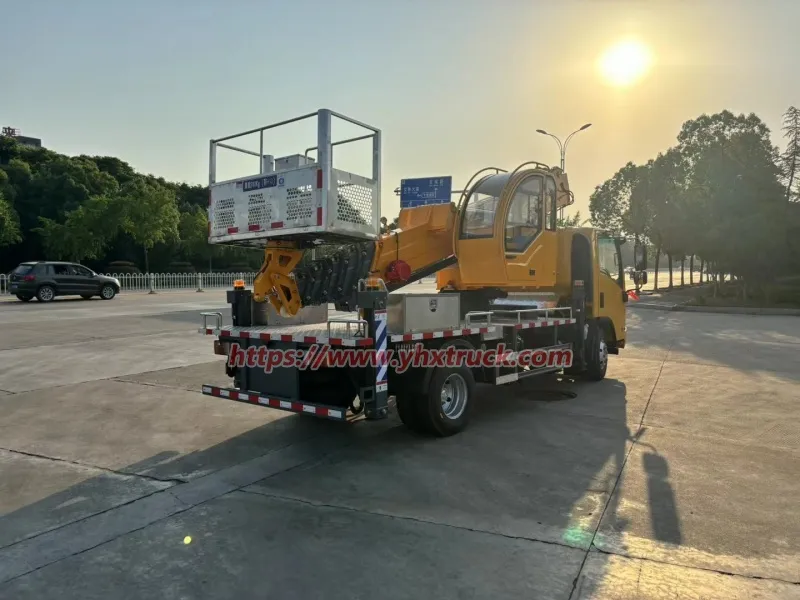

ISUZU KV100
30m Mobile Elevating Work Platform Truck (abbreviated MEWP) is a high-spec export hydraulic aerial work vehicle customized for 30-meter ultra-high altitude construction tasks, adopting original Japanese ISUZU KV100 light commercial chassis with mature and reliable global after-sales service network. The chassis adopts 3815mm long wheelbase layout and 120HP fuel-saving engine matched with 5-speed manual gearbox, fitted with 7.50 specification steel wire tires, air brake system, power steering, factory air conditioning, central door lock, electric windows and multi-functional steering wheel, realizing stable highway cross-region transfer and long-hour comfortable driving for engineering teams traveling between scattered high-rise construction sites.
The core upper working assembly adopts high-strength 14-sided 6-section integrated telescopic boom structure, breaking the height limitation of conventional short boom aerial vehicles to realize 30-meter maximum working height. The stainless steel reinforced working bucket holds a standard 200kg rated load for operators and construction tools; both turntable and working platform support unrestricted 360° horizontal rotation, equipped with automatic hydraulic leveling mechanism to keep the bucket horizontal at all boom extension angles. Electro-hydraulic proportional control technology realizes stepless smooth speed regulation for boom stretching, luffing and rotating movements without jitter or sudden acceleration, greatly improving high-altitude operation stability and comfort.
The closed full hydraulic system is configured with bidirectional hydraulic balance valves with built-in mechanical locking function, which can lock boom position instantly when hydraulic pressure fluctuates to prevent boom slippage; an independent emergency power source is reserved for sudden engine stall or main hydraulic pump failure, which can drive the boom to retract and lower the platform safely to the ground to avoid personnel trapping accidents. The four sets of outriggers adopt fully independent hydraulic control with separate valve groups for single-side expansion and leveling adjustment; each outrigger is fitted with a flashing warning light that automatically activates during lifting operation to remind surrounding pedestrians and vehicles of construction risks. The whole machine supports wireless remote control with dedicated horn trigger button for remote audible warning, and strict mechanical interlock between outrigger extension status and upper lifting function: lifting actions are completely locked if outriggers are not fully extended and leveled.
A complete multi-dimensional intelligent safety monitoring system covers all working links to form full-process protection barriers: real-time vehicle tilt angle alarm, soft leg uneven stress alarm, height and outreach travel limit locking, dangerous working condition voice and light dual alarm, boom amplitude tilt & length sensing interlock, upper turntable rotation limit protection, and dedicated aerial working horn for on-site safety reminder. All hydraulic pipelines, control sensors and electrical components adopt export-grade waterproof and dustproof sealing accessories, with complete EU/global mechanical export certification documents to support smooth cross-border customs clearance and local road registration.
Core Product Advantages
Genuine ISUZU KV100 Export Chassis：3815mm wheelbase, 120HP engine, 5-speed gearbox, full comfort configuration, stable long-distance highway driving performance
High-Strength 6-Section Telescopic Boom：14-sided boom profile, max 30m working height, 200kg bucket load, 360° full rotation + automatic hydraulic platform leveling
Precision Proportional Hydraulic Control：Bidirectional locking balance valves + electro-hydraulic stepless speed regulation, independent emergency power supply for fault descent
Independent Hydraulic Outrigger System：Separate valve group single-side adjustment, outrigger flashing warning lights, outrigger-lifting interlock safety design
Dual Local & Wireless Remote Control：Wireless remote operation with remote warning horn, flexible on-site operation without climbing to the platform
Full-Link Multi-Sensor Safety Protection：Tilt/soft leg alarm, travel limit, amplitude sensor interlock, rotation limit, audible-visual dual warning and working horn
Complete Global Export Qualification：Standardized hydraulic and electrical assemblies, full set of certification documents for barrier-free cross-border trade
2. Working Principle
The safe and stable 30-meter ultra-high altitude operation of ISUZU KV100 mobile elevating work platform truck relies on original ISUZU chassis power transmission, multi-section 14-sided telescopic boom hydraulic linkage system, bidirectional balance valve proportional control circuit, independent outrigger hydraulic branch, wireless remote control signal transmission module and multi-sensor full-process safety interlock system, realizing long-distance vehicle transit, 30m ultra-high lifting, precise angle positioning, remote control operation and full-risk early warning synchronously.
The ISUZU KV100 chassis 120HP engine provides traveling power for cross-city high-rise construction site transfer, matched with 5-speed gearbox and air brake system to guarantee stable climbing and braking performance on urban viaducts and mountain roads. After arriving at the working area, operators activate the independent outrigger hydraulic valve groups to stretch four outriggers horizontally and vertically for single-side leveling adjustment; each outrigger flashing light turns on automatically once hydraulic oil supplies pressure, and the safety interlock circuit will cut off all upper lifting hydraulic output if any outrigger fails to reach full extension horizontal state to prevent vehicle tipping.
After outrigger leveling confirmation, chassis power take-off transmits engine power to the main hydraulic station, and stable pressure oil drives the 6-section 14-sided telescopic boom to complete synchronous stretching and luffing actions, steadily reaching the rated 30-meter maximum working height. Bidirectional hydraulic balance valves lock oil pressure in real time during boom movement, cooperating with electro-hydraulic proportional flow control to realize slow, uniform stepless adjustment without boom shaking or sudden drop. The hydraulic slewing bearing drives the entire boom and bucket assembly to rotate 360° horizontally, while the automatic leveling hydraulic circuit independently adjusts bucket support oil pressure to keep the platform horizontal at all boom outreach angles.
Operators can select dual operation modes: local control levers on turntable and working bucket, or portable wireless remote controller with built-in warning horn button for ground remote adjustment. When unexpected faults such as engine flameout or main hydraulic pump damage occur, operators can activate the independent emergency power source to output standby oil pressure, slowly retract the multi-section boom and lower the bucket safely to the ground. Multiple sensors continuously collect vehicle tilt angle, outrigger stress, boom extension length and luffing tilt data, once exceeding safe threshold values, the system immediately triggers audible-visual alarms and locks all boom movements to eliminate tipping and overload risks in advance.
3. Daily Application Scenarios
Equipped with 30-meter ultra-high lifting capacity, comfortable long-distance transit chassis, precise proportional hydraulic control and comprehensive multi-layer safety alarm system, this export-grade ISUZU KV100 MEWP is widely purchased by overseas high-rise construction contractors, power grid maintenance enterprises, municipal viaduct management departments, large stadium and exhibition hall operation teams, and urban facade renovation companies:
High-Rise Building Exterior Construction: High-rise curtain wall installation, exterior wall thermal insulation construction, facade painting, exterior pipeline laying and high-altitude glass cleaning above 20 floors
Overhead Power & Communication Maintenance: High-voltage overhead line inspection, transmission tower accessory replacement, signal base station high-altitude equipment installation and overhead cable overhaul
Municipal Viaduct & Bridge Engineering: Urban overpass guardrail renovation, bridge exterior crack inspection, high-altitude streetlamp and signal light replacement on elevated road sections
Large Indoor & Outdoor Venue Overhaul: Stadium, exhibition hall and shopping mall high ceiling lamp replacement, suspended equipment inspection and large billboard high-altitude installation
Urban Public Facility Emergency Repair: Post-storm high-altitude facility obstacle clearance, high-rise public building fire emergency rescue and outdoor overhead pipeline rush repair
Different from medium-height 14–24m aerial lifts limited to low-rise construction, this 30m ultra-high telescopic boom model covers all mainstream high-rise and elevated road high-altitude operation scenarios. The wireless remote control and independent outrigger adjustment design greatly improve construction efficiency on narrow crowded urban sites, while the full-set multi-sensor safety system reduces safety management labor input for large-scale engineering projects.
4. Comparison with Traditional Models
Compared with medium-height 14–24m ordinary aerial bucket trucks: Conventional medium-height aerial lifts have short boom structures unable to reach above 25-meter high-rise construction positions, requiring auxiliary scaffolding or secondary equipment coordination. This ISUZU KV100 model adopts 6-section 14-sided ultra-long telescopic boom to realize independent 30m high-altitude operation without supporting equipment, expanding project coverage range significantly.
Compared with low-end refitted 30m aerial vehicles with generic chassis: Miscellaneous unknown chassis modified high-altitude lifts lack standardized comfort configurations, unstable power output and no global spare parts supply channels; their simple hydraulic systems omit bidirectional balance locking valves and independent emergency power sources, prone to boom slipping and personnel trapping faults. Genuine ISUZU KV100 original chassis matches factory integrated full hydraulic system with complete safety and driving configurations, with worldwide official after-sales service guarantee.
Compared with aerial lifts without independent outrigger hydraulic groups: Ordinary aerial vehicles adopt linked single-valve outrigger control, unable to adjust single-side leveling independently on uneven ground, lacking outrigger warning lights and lifting interlock protection, with prominent vehicle tipping risks. This product equips separate hydraulic valve groups for each outrigger, flashing operation lights and strict outrigger-lifting interlock circuit to eliminate uneven ground operation hidden dangers.
Compared with single wired-control aerial work vehicles: Traditional aerial lifts only support local operation on turntable or bucket, requiring frequent climbing up and down for ground adjustment and reducing construction efficiency. This ISUZU MEWP adds portable wireless remote controller with remote warning horn, realizing flexible ground remote positioning and real-time site safety reminder.
ISUZU KV100 Mobile elevating work platform truck |
General | Chassis Brand | ISUZU KV100 |
| Overall Dimension | 5995x2030x3200mm |
| GVW / Kerb Weight | 4495kg / 4365kg |
Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner |
Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine |
| Power | 120Ps/88kw |
| Displacement | 2999cc |
| Emission Standard | Euro V |
Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 6-speed forward & 1 reverse |
| Wheelbase/No. of axle | 3815 mm / 2 |
| Tyre Specification | 6.50R16LT 10PR |
| Tyre Number | 6 tires and 1 spare tire |
| Max Speed | 90 km/h |
| Paint | Metallic paint |
Superstructure | Max. Basket Floor Height | 30 M |
| Loading Capacity | 200 KG |
| Boom Type | The beam is telescopic extension type, hydraulic actuated and controlled |
| Rotation Angle | 360° with base turntable |
| Control | Wireless remote control system,Control both on the ground and remote control in cage |
| Bucket | Carbon steel |
| Safety Device | Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump |
| Four hydraulic outriggers are equipped, stable and reliable. |
| All the standard accessories: Tool kit ,English manual. |
5. Buying Guide
For overseas high-rise construction contractors, power grid maintenance teams and municipal elevated road management departments purchasing 30m ultra-high altitude export aerial equipment, prioritize chassis reliability, ultra-long boom performance, hydraulic safety configuration and full-range safety interlock system:
Select genuine ISUZU KV100 certified chassis：Choose original 3815mm wheelbase, 120HP 5-speed transmission chassis with full comfort configuration and complete export certification for long-distance cross-site transit.
Confirm high-strength multi-section telescopic boom：Prioritize 14-sided 6-section boom structure to guarantee stable 30m working height and automatic hydraulic bucket leveling function.
Check complete precision hydraulic safety system：Must equip bidirectional hydraulic balance locking valves, electro-hydraulic proportional stepless control and independent emergency power supply for fault safe descent.
Verify independent outrigger interlock & remote control function：Select models with separate outrigger hydraulic valve groups, outrigger flashing warning lights, outrigger-lifting interlock and wireless remote control with warning horn.
Match full multi-sensor safety alarm configuration：Equipped with vehicle tilt, soft leg, travel limit, amplitude sensing and rotation limit multi-layer alarm protection to meet international high-altitude operation safety standards.
6. Operation and Maintenance Tips
This ISUZU KV100 30m mobile elevating work platform truck adopts reinforced multi-section telescopic boom, independent split hydraulic circuits and multi-sensor intelligent safety monitoring system, with high structural rigidity and stable long-hour ultra-high altitude operation performance. Standardized daily operation and periodic targeted maintenance can extend hydraulic and chassis core component service life and permanently retain vehicle export and road registration legal validity:
Daily Operation Specifications
Complete full inspection of chassis brake, steering and tire pressure before long-distance highway transit; park on flat solid ground and fully adjust four outriggers to horizontal state before launching lifting operation
Observe outrigger flashing warning lights during hydraulic extension; if any light fails to activate, stop operation immediately and inspect outrigger hydraulic circuit, do not shield safety interlock sensors forcibly
Control total weight of operators and construction tools within 200kg rated bucket load, distribute loads evenly to avoid eccentric load triggering tilt alarm and hydraulic locking protection
Operate multi-section telescopic boom stretching and luffing at uniform low proportional speed, forbid full-speed rapid boom movement to prevent impact damage to balance valves and boom welding joints
Test wireless remote control, emergency power source and all alarm sensors before daily construction; activate emergency descent function simulation to confirm standby power sensitive response under power failure conditions
Regular Maintenance Advice
Replace low-temperature resistant export dedicated hydraulic oil every 12 months, clean main hydraulic station filter elements monthly to prevent impurity blockage of balance valve and proportional control pipelines
Monthly inject anti-wear lubricating grease into each boom telescopic sliding joint and 360° slewing bearing, eliminate stretching jitter and rotation clamping stagnation during 30m high-altitude operation
Quarterly calibrate vehicle tilt, outrigger soft leg, boom length and tilt amplitude sensors to guarantee accurate alarm signal and safety locking response threshold
Inspect outrigger hydraulic sealing rings, flashing warning light wiring harness and wireless remote control signal receiver every two months, replace aging damaged accessories in a timely manner
Half-yearly conduct comprehensive maintenance on ISUZU KV100 chassis engine, air brake and power steering systems to maintain stable long-distance highway driving performance
Long-term standardized maintenance can stabilize the ultra-long telescopic boom lifting performance, full hydraulic safety control system and multi-sensor early warning mechanism, reduce unexpected on-site breakdown loss during high-rise construction, and keep vehicle cross-border export certification valid for long-term overseas engineering business operation.
7. Frequently Asked Questions
Q1: What are the core chassis and upper working parameters of this ISUZU MEWP?
A1: It adopts reliable ISUZU KV100 chassis with 3815mm wheelbase and 120HP power, matched with 5-speed gearbox and full hydraulic 14-sided 6-section telescopic boom system, featuring 30m maximum working height and 200kg bucket capacity, supporting 360° full rotation and intelligent safety control.
Q2: What complete comfortable driving configurations does the original ISUZU KV100 chassis carry?
A2: Equipped with 7.50 steel wire tires, air conditioning, power steering, air brake, central lock, electric windows and multi-function steering wheel, realizing stable and comfortable long-distance cross-site driving.
Q3: What core advantages does its hydraulic control system have?
A3: Fitted with bidirectional hydraulic balance valves with locking function and electro-hydraulic proportional control for smooth precise stepless operation; independent emergency power source is reserved to safely lower the platform when unexpected faults occur.
Q4: What special functions are equipped on the outrigger and operation control system?
A4: Outriggers adopt fully independent hydraulic control with separate valve groups and automatic flashing warning lights during operation; it supports wireless remote control with remote horn button, and lifting operation is interlocked with outrigger extension state to improve overall safety.
Q5: What multi-dimensional safety alarm and limit protection systems are integrated?
A5: It includes vehicle tilt alarm, soft leg alarm, height/outreach travel limit, dangerous working condition audible-visual dual alarm, boom amplitude tilt & length sensor interlock, upper rotation limit and dedicated aerial working horn for on-site safety warning, realizing full-process all-round operator protection.
Conclusion
The ISUZU 30m KV100 Mobile elevating work platform truck (MEWP) is a high-spec export ultra-high altitude hydraulic aerial work vehicle developed for global high-rise, elevated bridge and large venue high-altitude construction demands. Built on verified genuine ISUZU KV100 light commercial chassis with 3815mm wheelbase and 120HP stable power assembly, it solves the height limitation and poor chassis comfort defects of medium-height ordinary aerial lifts, matching high-strength 14-sided 6-section telescopic boom to reach the 30-meter ultra-high working height standard with 200kg stable bucket load capacity and automatic hydraulic leveling platform.
Equipped with bidirectional hydraulic balance locking valve, electro-hydraulic proportional precise control and independent emergency power supply, this MEWP eliminates boom slipping and personnel trapping risks caused by hydraulic system faults. The independent multi-valve outrigger system with flashing warning lights and outrigger-lifting safety interlock, plus portable wireless remote control with warning horn, greatly improves operation flexibility on narrow urban construction sites. A complete multi-sensor safety monitoring system covering tilt, soft leg, travel limit and amplitude interlock forms full-link risk early warning protection, fully meeting strict international MEWP industrial safety standards.
With mature global ISUZU chassis after-sales network, standardized export hydraulic and electrical assemblies and complete cross-border customs clearance certification documents, this 30m ultra-high aerial lift removes overseas registration, spare parts supply and safety audit obstacles for engineering purchasers. Balancing comfortable long-distance transit performance, 30-meter ultra-high lifting capability, precise hydraulic operation and full-range intelligent safety protection, the ISUZU KV100 mobile elevating work platform truck is premium dedicated high-altitude construction equipment for global high-rise contractors, power grid maintenance teams and municipal elevated road management departments, delivering stable, compliant and ultra-high altitude operation solutions for high-rise and large-scale engineering projects.
