ISUZU 5000Liters Vacuum Sewage Suction Truck Export Professional Introduction
Table of Contents
1. Product Overview
2. Working Principle
3. Daily Application Scenarios
4. Comparison with Traditional Sanitation Vehicles
5. Buying Guide
6. Operation and Maintenance Tips
7. Frequently Asked Questions
Conclusion
1. Product Overview
Core Product Keywords: ISUZU Vacuum Suction Truck, Sanitation Truck, Wastewater Suction Truck, Sludge Suction Vehicle, Municipal Sanitation Equipment.
Detailed Description of Vacuum Sewage Suction Truck: This vacuum sewage suction truck relies on high-performance vacuum pump to realize automatic suction and self-discharging of sludge, feces, septic tank dirt and industrial slurry. The fully closed tank prevents sewage leakage and odor emission. Hydraulically operated rear cover enables fast unloading. Equipped with complete anti-overflow protection devices, it works steadily for septic tank cleaning, pipeline dredging and sewage transportation.

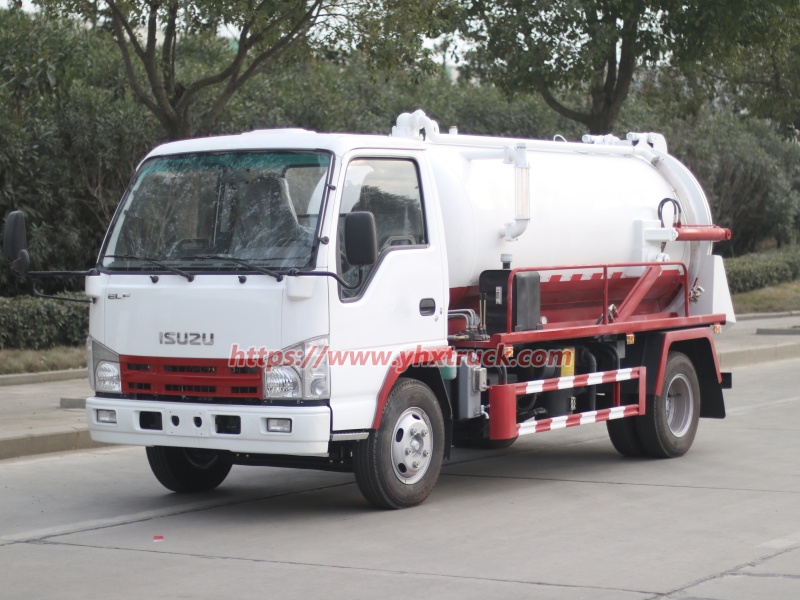

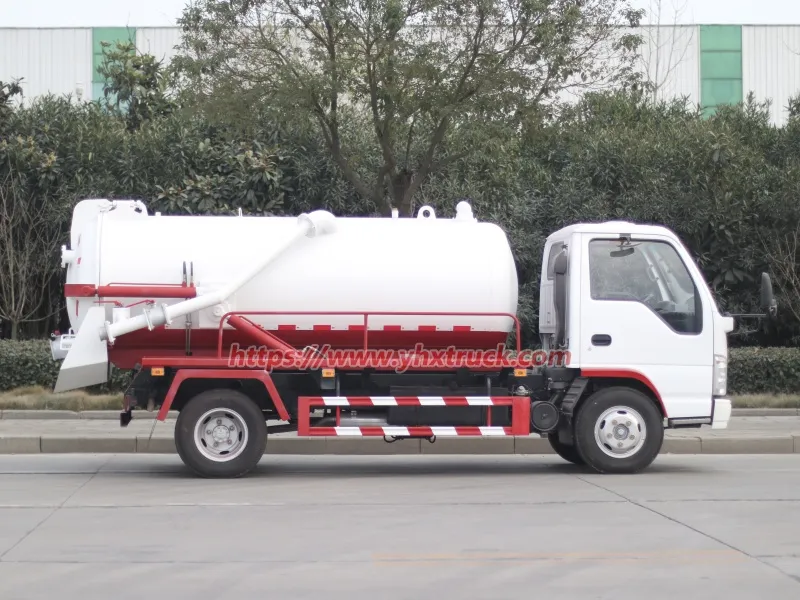

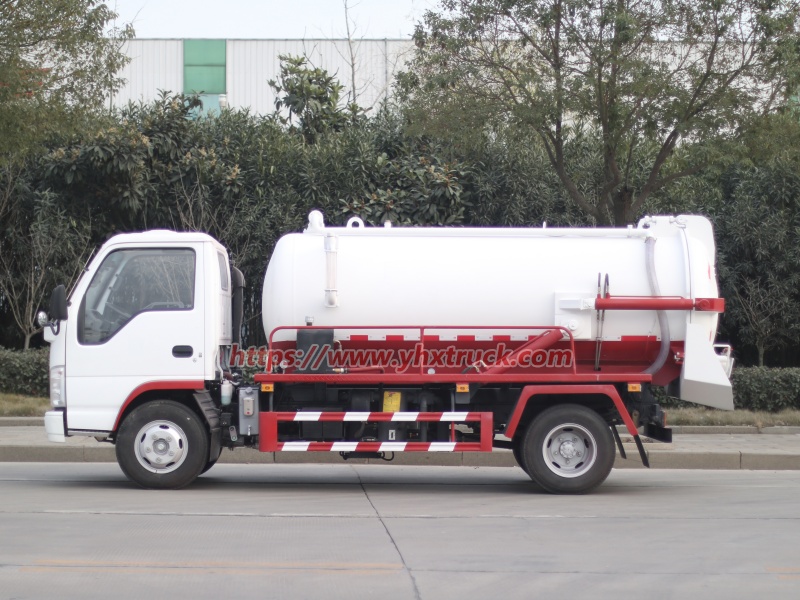

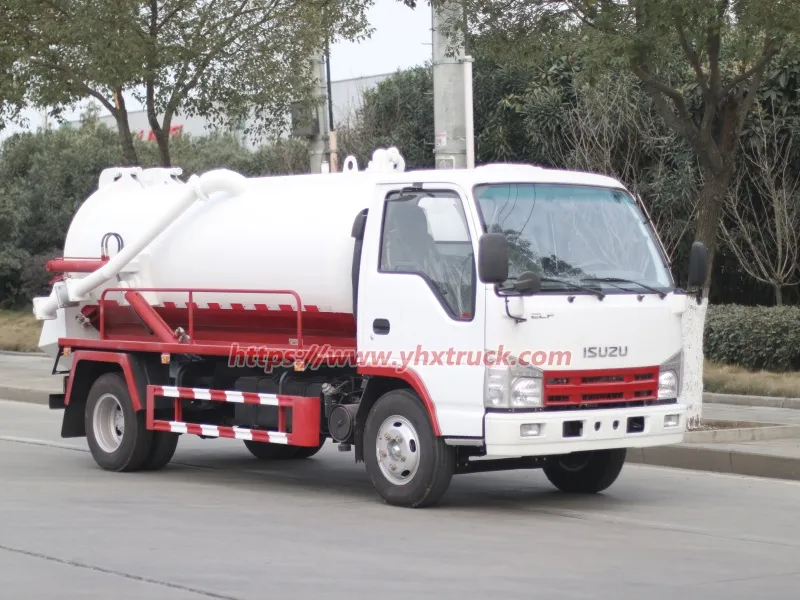

This ISUZU 130HP vacuum sewage suction truck is built on genuine ISUZU 4×2 single axle chassis, with an effective tank capacity of 5 cubic meters (5000 liters). Featuring stable power output, low fuel consumption and durable performance, it is widely used in municipal sanitation, residential communities, factories, urban & rural sewer pipelines, river channels and ditches. The truck is designed for sucking, transporting and discharging sewage, sludge, septic waste and other liquid & semi-solid wastes, serving as an ideal vehicle for sanitation operations.
Body Structure

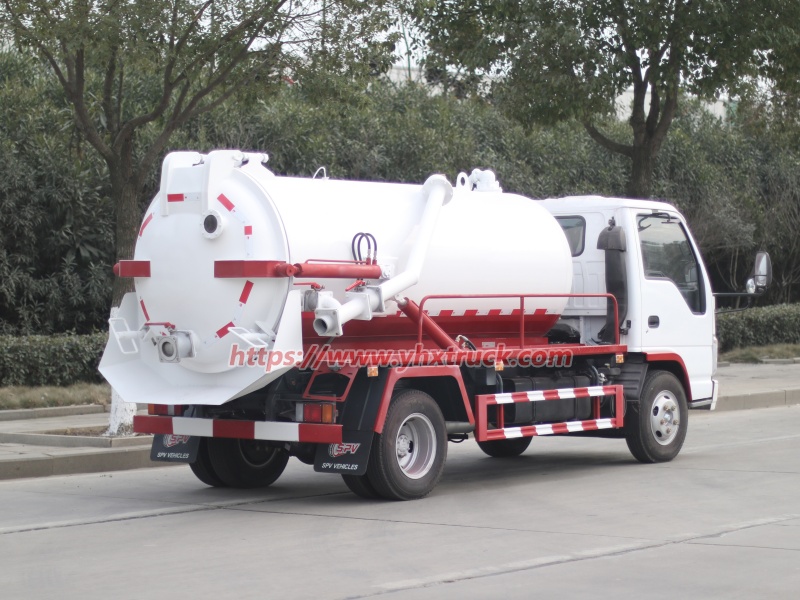

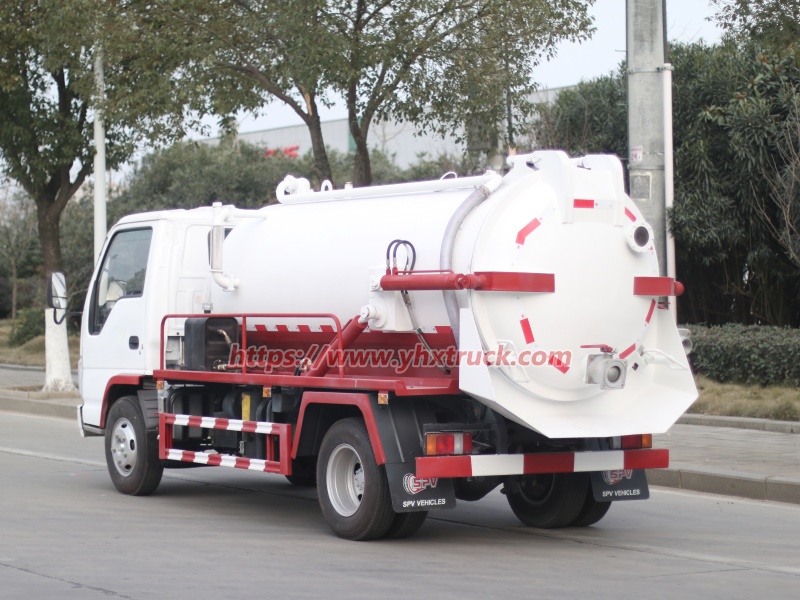

Tank: Made of 6mm high-quality Q235 carbon steel, featuring anti-corrosion and leak-proof performance. The oval / round tank is fitted with internal anti-surge baffles for safer transportation. The rear cover is hydraulically operated, and the tank adopts double-cylinder hydraulic tipping for thorough waste discharge.
Vacuum System: Equipped with SK-9 water ring vacuum pump with strong suction. The vertical suction lift reaches ≥8m and horizontal suction lift ≥45m. It is fitted with oil-gas separator, water-gas separator, vacuum pressure gauge and anti-overflow device to prevent sewage backflow and ensure safe operation.
Pipeline & Operation: Standard 6-meter reinforced suction hose (extended length available). Φ100 suction port and Φ150 discharge port are equipped with quick connectors and ball valves. Centralized control by hydraulic multi-way valve with dual operation positions (cab & rear side), easy and efficient to operate.
Auxiliary Fittings: Observation window, liquid level gauge, anti-slip ladder, double side toolboxes and hand washing device are equipped for practical use.
Core Advantages
1. Compact structure and high mobility balance load capacity and trafficability.
2. The genuine ISUZU chassis guarantees reliable quality and low maintenance cost.
3. Integrated vacuum suction and hydraulic tipping system greatly improves working efficiency.
4. The anti-corrosion tank is applicable for various corrosive wastes with long service life.
5. Left-hand drive and right-hand drive are both available for global sanitation markets.
2. Working Principle
The whole working system of ISUZU 5000L Vacuum Sewage Suction Truck consists of three core modules: genuine ISUZU 4×2 single axle chassis power system, SK-9 water ring vacuum pumping assembly and pressure-resistant fully sealed sewage tank.
After engine ignition, the power take-off device transmits chassis power to drive the SK-9 water ring vacuum pump to run continuously. The vacuum pump extracts internal air of the fully-closed oval carbon steel tank to form stable negative pressure. Relying on atmospheric pressure difference, external sludge, feces, septic tank dirt, industrial slurry and liquid-semi-solid waste are sucked into the tank via reinforced suction hose.
Matched with oil-gas separator, water-gas separator and anti-overflow device, the system can isolate mixed gas and sewage, cut off liquid backflow and protect the vacuum pump from damage. After full load, operators control hydraulic system to open hydraulic rear cover and activate double-cylinder tipping structure, realizing full self-discharging of waste without residue. Dual operating positions realize flexible and labor-saving on-site operation.
3. Daily Application Scenarios
Urban Municipal Sanitation: Urban sewer dredging, public drainage pipeline decontamination, regular septic tank cleaning for downtown areas
Residential Community Operation: Septic dirt disposal, domestic sewage suction and daily sanitation maintenance for residential quarters and commercial parks
Factory Industrial Treatment: Factory wastewater, industrial slurry suction and transportation, production sewage disposal
Rural Environmental Renovation: Rural sewer pipeline cleaning, ditch sediment removal and decentralized domestic sewage treatment
Water Body Governance: River channel and landscape ditch sludge cleaning, daily water environment restoration
4. Comparison with Traditional Sanitation Vehicles
Vs Manual Sewage Cleaning Work: Traditional manual cleaning relies on manual digging and simple pumping tools, featuring low efficiency, massive labor cost and pervasive odor leakage, which easily causes urban secondary pollution. This ISUZU sewage suction truck realizes automatic suction and discharging, cuts labor cost greatly and eliminates on-site odor pollution.
Vs Ordinary Small Sanitation Trucks: Common light-duty sanitation vehicles have scattered functions, weak suction power and simple safety accessories, lacking anti-overflow protection. This ISUZU finished vehicle equips professional SK-9 vacuum pump and full-set protective devices, with standardized pipeline configuration and safer operation.
Vs Non-standard Modified Sewage Trucks: Irregular refitted vehicles adopt thin tank plates, without anti-surge structure and complete safety parts, easy to leak and reverse-flow damage the pump. Our ISUZU original refitted truck adopts 6mm thickened Q235 carbon steel tank, matched professional vacuum system, with stable performance and global adaptable driving mode.
ISUZU Sewage Suction Truck ( 5000 liters) |
General | Chassis Brand | ISUZU |
| Overall Dimension | 5990 X 2350 X 2660 mm |
| GVW / Kerb Weight | 8280kg / 3340 kg |
Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner |
Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU diesel engine |
| Power | 130Hp (96 KW) |
| Displacement | 2500ml |
| Emission Standard | Euro 3 / Euro 4 / Euro 5 |
Chassis | Drive Type | left or right hand drive |
| Transmission | ISUZU MSB-5MT 5-speed manual transmission |
| Wheelbase/No. of axle | 3360 / 2 |
| Tyre Specification | 7.00R16LT |
| Tyre Number | 6 tyres and 1 spare tyre |
| Max Speed | 89 km/h |
| Paint | Metallic paint |
Superstructure | Tank Capacity | 5000liters |
| Tank Material | Carbon steel |
| Standard Configuration:6mm high-quality Q235 carbon steel, anti-corrosion and leak-proof. Oval / round tank with internal anti-surge baffles; hydraulically operated rear cover and double-cylinder hydraulic tipping for thorough discharge. |
Optional | Optional configurations：Optional configurations include stainless steel tank, rear hydraulic opening cover and high-pressure cleaning reel. |
5. Buying Guide
For overseas municipal sanitation departments, environmental engineering contractors and sanitation fleet purchasers, please confirm core configurations before procurement:
Genuine ISUZU 4×2 Single Axle Chassis: Authorized original chassis with 130HP stable power output, low fuel consumption, mature global after-sales network, spare parts easy to obtain worldwide.
Standard 5CBM Anti-corrosion Sewage Tank: 6mm Q235 carbon steel oval tank, internal anti-surge baffles, hydraulic rear cover and double-cylinder tipping structure, leak-proof and durable.
Complete SK-9 Vacuum System: Matched dedicated water ring vacuum pump, full-set separation and anti-overflow accessories, stable suction lift, avoiding pump damage and operation failure.
Global Adaptable Driving Mode: Optional left-hand drive and right-hand drive to fit traffic rules of different countries, complete export certification for cross-border delivery.
6. Operation and Maintenance Tips
Standardized operation and regular maintenance can cut down failure rate and prolong vehicle service life:
6.1 Daily Operation Specifications
6.2 Regular Maintenance Advice
Check tank tightness, hydraulic rear cover locking status and SK-9 vacuum pump oil level before startup
Inspect anti-overflow device and separator sensitivity before sewage suction to prevent backflow accident
Prohibit sucking large hard sundries to avoid pipeline blockage and vacuum pump abrasion
Operate dual-control hydraulic valve reasonably, switch operation position strictly during parking status
Clean tank interior and suction hose after daily work to prevent corrosive sludge accumulation
7. Frequently Asked Questions
Q1: Standard export name of this sanitation vehicle
Replace special vacuum pump oil every 12 months to stabilize suction performance of SK-9 pump
Clean oil-gas and water-gas separator monthly to reduce dirt clogging
Check tank welding seams and hydraulic sealing strips quarterly, replace aging accessories timely
Lubricate hydraulic joints and rear cover rotating parts regularly to guarantee flexible opening
Follow official ISUZU chassis maintenance specifications to ensure power stability and fuel efficiency
A1: Official export names: ISUZU 5000L Vacuum Sewage Suction Truck, ISUZU 5CBM Sewage Suction Vehicle, ISUZU 4×2 Sludge Suction Truck.
Q2: What kinds of waste can the truck dispose?
A2: It is applicable to suck and discharge sewage, sludge, feces, septic tank dirt, river sediment and industrial slurry, covering municipal, residential, factory and rural sanitation scenarios.
Q3: What are the highlights of the vacuum system?
A3: Equipped with dedicated SK-9 water ring vacuum pump, the vertical suction depth ≥8m and horizontal suction distance ≥45m. Matched with full-set separation and anti-overflow devices, it avoids sewage backflow and ensures long-term stable operation.
Q4: Can we customize driving direction and accessories?
A4: Yes. Both left-hand drive and right-hand drive are optional. We also support extended suction hose, customized tank painting and upgraded anti-corrosion lining modification.
Q5: Why choose ISUZU chassis sanitation truck?
A5: Genuine ISUZU chassis owns stable power output, low fuel consumption and ultra-low failure rate. It has global spare parts supply and mature after-sales service, greatly cutting overseas daily maintenance cost for sanitation fleets.
Conclusion
ISUZU 5000Liters Vacuum Sewage Suction Truck is a compact and cost-effective sanitation vehicle tailored for global medium-scale sewage disposal projects. Built on authentic ISUZU 4×2 single axle chassis with steady 130HP power, it integrates vacuum automatic suction and hydraulic self-discharging functions.
With thickened anti-corrosion carbon steel tank, high-efficiency SK-9 vacuum system, dual-position convenient operation and complete safety accessories, this vehicle solves the pain points of bulky structure, high maintenance cost and insufficient suction power of heavy-duty sanitation trucks. Supporting dual driving mode customization, it adapts to various national traffic rules and working conditions, becoming the preferred medium-sized sanitation equipment for overseas municipal departments and property contractors.
