Table of Contents
1. Product Overview
2. Working Principle
3. Daily Application Scenarios
4. Comparison with Traditional Sanitation Vehicles
5. Buying Guide
6. Operation and Maintenance Tips
7. Frequently Asked Questions
Conclusion
1. Product Overview
Core Product Keywords: ISUZU GIGA Vacuum Suction Truck, Municipal Sanitation Truck, Wastewater Suction Vehicle, Sludge Suction Truck, Sewage Disposal Equipment.

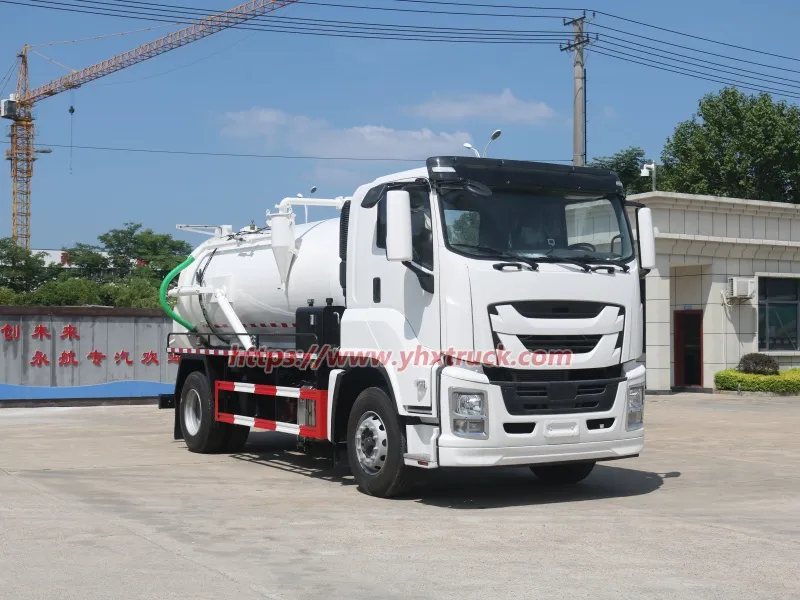

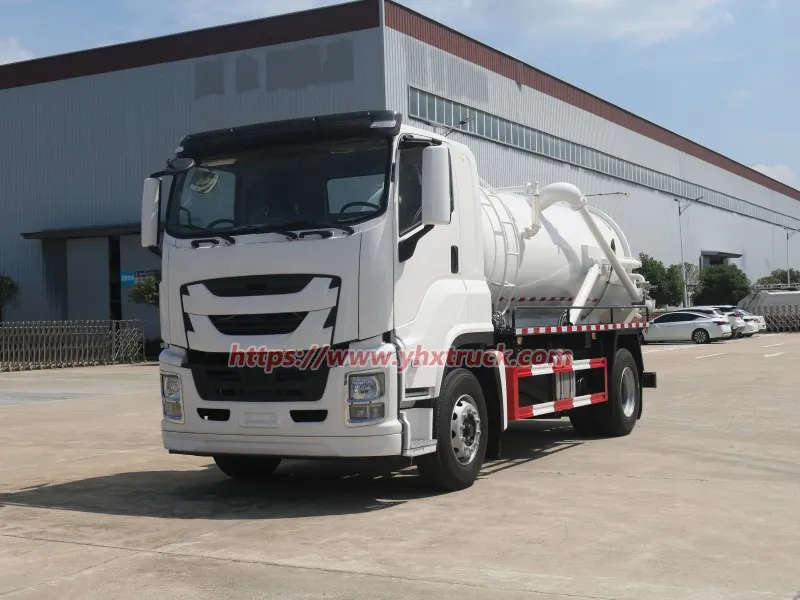

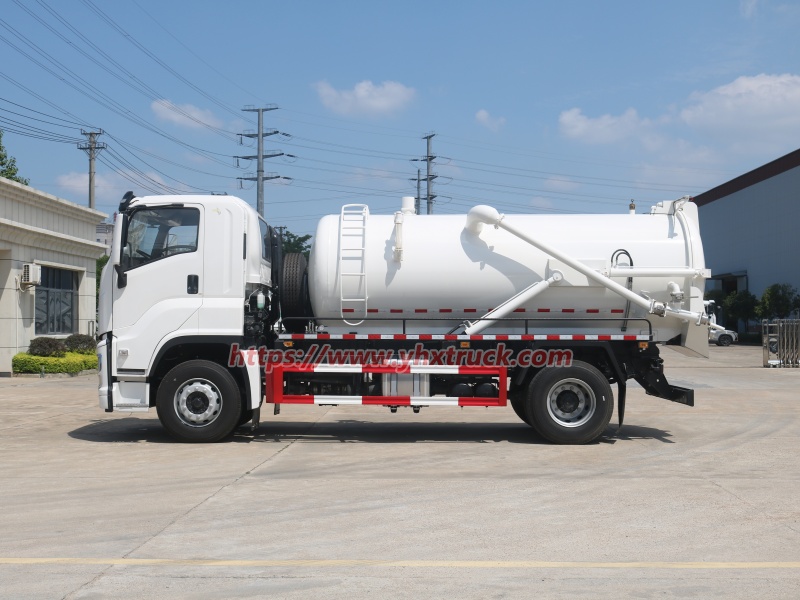

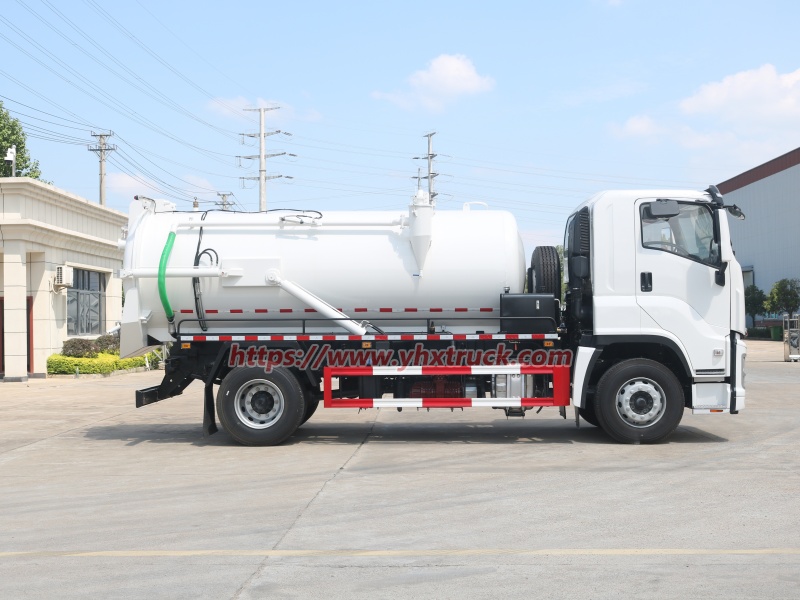

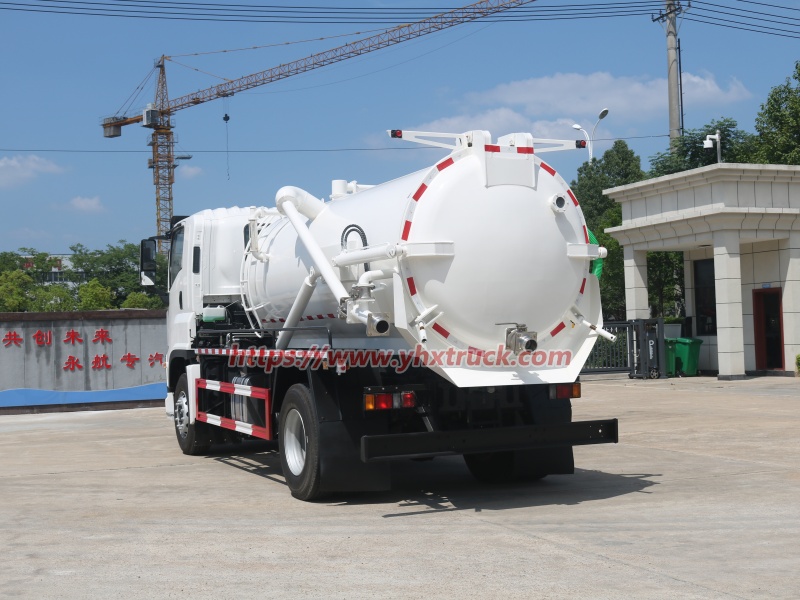

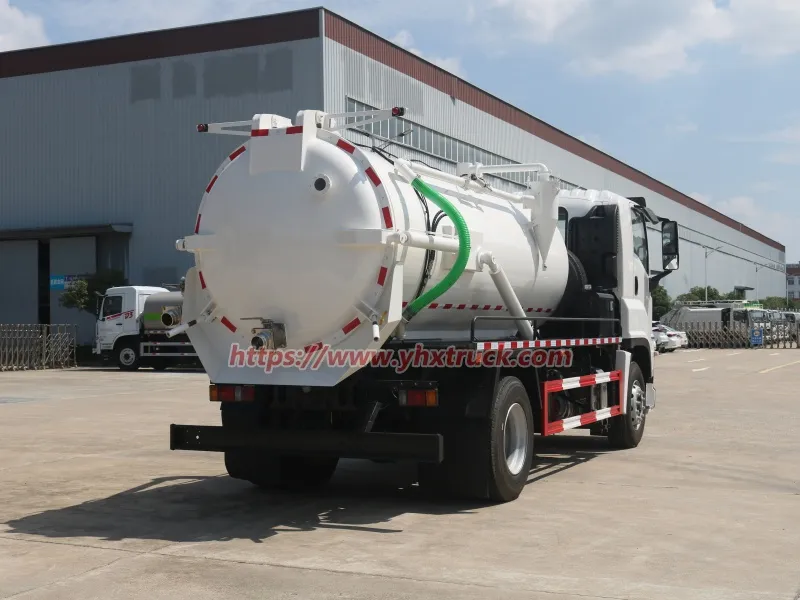

Detailed Description: ISUZU GIGA 4×2 10CBM Sewage Suction Vacuum Truck. This sewage suction truck is professionally designed for vacuum suction, transportation and automatic discharge of sewage, sludge, sediment and septic waste. Equipped with a high-performance water-ring vacuum pump, it provides strong suction power to quickly clean blocked sewers, septic tanks, settling tanks, river ditches and construction site sludge. The truck integrates vacuum suction, sealed transportation and hydraulic self-discharging functions. The hydraulically opened rear cover and full-tank tipping design ensure thorough and residue-free discharging. With reliable sealing performance and low failure rate, it is widely used for municipal sanitation, residential property cleaning, river regulation and construction sewage treatment.
Core Advantages
1. Original ISUZU GIGA chassis features powerful output, low fuel consumption, low breakdown rate and economical maintenance cost.
2. Large 10CBM tank increases single-load volume and improves working efficiency.
3. High-efficiency water-ring vacuum pump delivers strong suction; complete safety fittings effectively avoid sewage backflow and pump damage.
4. Full-hydraulic system with dual control positions at cab and rear; one operator can finish suction, transport and unloading.
5. Thickened carbon steel tank with anti-corrosion treatment owns excellent tightness, strong corrosion resistance and long service life.
2. Working Principle
The whole working system of ISUZU GIGA 10CBM Sewage Suction Truck consists of three major modules: original ISUZU GIGA 4×2 chassis power system, high-performance water-ring vacuum system and fully sealed anti-corrosion sewage tank.
After vehicle startup, the power take-off transfers chassis power to drive the water-ring vacuum pump to operate continuously. The vacuum pump discharges internal air of the sealed tank to form stable negative pressure inside the tank body. Relying on atmospheric pressure difference, external sewage, sludge, sediment and septic waste are automatically sucked into the thickened carbon steel tank.
Matched with full-set safety accessories, the system can block sewage backflow and protect the vacuum pump from abrasion and damage. After loading finished, operators can control the integrated full-hydraulic system via dual operation positions inside the cab and vehicle rear. It activates hydraulic rear cover and full-tank tipping structure to discharge wastes completely without residue. The whole workflow realizes one-person automatic operation, greatly saving human resources.
3. Daily Application Scenarios
Municipal Sanitation Service: Urban sewer blockage cleaning, public drainage pipeline maintenance, city septic tank and settling tank regular decontamination
Residential Property Maintenance: Community sewage disposal, septic waste cleaning, residential drainage ditch desilting
River Water Regulation: Urban river and rural channel sludge cleaning, watercourse sediment removal and water environment remediation
Construction Engineering: Construction site sludge suction, foundation pit sewage transportation, construction wastewater disposal
Industrial Park Sanitation: Factory domestic sewage and sediment disposal, plant drainage pipeline dredging
4. Comparison with Traditional Sanitation Vehicles
Vs Manual Sewage Cleaning: Traditional manual dredging relies on handwork and simple pumping tools, featuring low efficiency, excessive labor cost and severe odor leakage, triggering urban secondary pollution. This ISUZU GIGA truck supports full-process automatic operation, cutting labor cost and eliminating environmental pollution effectively.
Vs Medium-sized Ordinary Sewage Trucks: Common sanitation vehicles are equipped with below 8CBM small tank, requiring repeated round trips and lowering overall working efficiency. This model adopts 10CBM large-capacity tank to boost single-time loading capacity and reduce transportation frequency.
Vs Non-standard Refitted Vehicles: Irregular modified trucks adopt thin untreated tank shell, poor tightness and anti-corrosion performance, easy to cause sewage leakage. ISUZU GIGA finished vehicle adopts thickened anti-corrosion carbon steel tank, matched original hydraulic and vacuum system, with stable performance and ultra-low failure rate.
ISUZU Sewage Suction Truck ( 10000 liters) |
General | Chassis Brand | ISUZU |
| Overall Dimension | 8300 X 2550 X3360 mm |
| GVW / Kerb Weight | 18000kg / 48700 kg |
Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner |
Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU diesel engine |
| Power | 240Hp (177KW) |
| Displacement | 7790ml |
| Emission Standard | Euro 3 / Euro 4 / Euro 5 |
Chassis | Drive Type | left or right hand drive |
| Transmission | ISUZU MLD-6Q 6-speed manual transmission |
| Wheelbase/No. of axle | 4500 / 2 |
| Tyre Specification | 295/80R22.5 16PR |
| Tyre Number | 6 tyres and 1 spare tyre |
| Max Speed | 89 km/h |
| Paint | Metallic paint |
Superstructure | Tank Capacity | 10000liters |
| Tank Material | Carbon steel |
| Standard Configuration:10000liter capacity, 6mm Q235 carbon steel with full anti-corrosion & leakproof treatment, oval shape with inner anti-surge baffles; hydraulically open rear cover + double-cylinder hydraulic tipping. |
Optional | Optional configurations：304 stainless steel tank + wear-resistant lining at tank bottom |
5. Buying Guide
For overseas municipal sanitation bureaus, engineering contractors and sanitation fleet purchasers, select vehicles based on the following core indicators:
Genuine ISUZU GIGA 4×2 Chassis: Authorized original chassis with strong power output, fuel-saving performance and global spare parts supply network, reducing overseas after-sales pressure.
10CBM Anti-corrosion Integrated Tank: Thickened carbon steel material with professional anti-corrosion treatment, excellent sealing capacity, durable for long-term corrosive sewage operation.
Stable Vacuum & Hydraulic System: High-performance water-ring vacuum pump and full-hydraulic assembly, dual control design simplifies operation, complete safety fittings prevent pump damage.
Full Export Qualification: Complete export certification and customs clearance documents provided, applicable to government bidding and bulk overseas delivery.
6. Operation and Maintenance Tips
Standardized daily operation and scientific maintenance can minimize breakdown rate and extend vehicle service life:
6.1 Daily Operation Specifications
6.1 Daily Operation Specifications
Check tank sealing condition, hydraulic pipeline tightness and vacuum pump oil level before startup
Inspect safety protective fittings to guarantee anti-backflow function works normally before suction work
Forbid sucking oversized hard sundries to avoid pipeline clogging and vacuum pump abrasion
Switch dual-control hydraulic valves only when the vehicle is fully parked to avoid hydraulic failure
Clean tank interior and suction pipelines thoroughly after daily operation to prevent corrosive sludge accumulation
6.2 Regular Maintenance Advice
Replace dedicated vacuum pump oil every 12 months to sustain stable suction performance
Clean vacuum safety accessories and pipelines monthly to reduce dirt deposition
Check tank welding seams and hydraulic sealing parts quarterly, replace aging accessories timely
Lubricate hydraulic driving components and rear cover rotating parts regularly
Abide by official ISUZU GIGA chassis maintenance rules to stabilize power performance
Check tank tightness, hydraulic rear cover locking status and vacuum pump oil level before engine startup
Verify the working sensitivity of anti-overflow valve and moisture separator before sewage suction
Prohibit sucking massive hard sundries to avoid pipeline blockage and vacuum pump abrasion
Switch dual operation positions only when the vehicle is fully parked to prevent hydraulic failure
Clean tank interior and 7m suction hose after daily operation to avoid corrosive sludge deposition
7. Frequently Asked Questions
Q1: Standard export name of this sanitation vehicle
Q1: Official export name
A1: Standard export names: ISUZU GIGA 10CBM Sewage Suction Vacuum Truck, ISUZU GIGA 4×2 Sludge Suction Vehicle, ISUZU 10000L Sanitation Sewage Truck.
Q2: What kinds of waste can the truck dispose?
A2: It is applicable to sewage, sludge, river sediment, septic waste and construction slurry, covering municipal, property, water conservancy and construction industries.
Q3: What is the biggest advantage of ISUZU GIGA chassis?
A3: The original ISUZU GIGA chassis delivers strong power output, low fuel consumption and ultra-low failure rate. It enjoys worldwide after-sales network, with low daily maintenance cost for overseas sanitation fleets.
Q4: Why adopt dual hydraulic control design?
A4: Dual operating positions set at cab and vehicle rear realizes flexible operation. Only one worker can complete full suction, transportation and unloading procedures, saving labor cost greatly.
Q5: Can the tank adapt to corrosive sewage?
A5: Yes. The whole tank adopts thickened carbon steel plus professional anti-corrosion treatment, featuring outstanding tightness and corrosion resistance, suitable for long-term disposal of industrial and corrosive sewage.
A1: Official export names: ISUZU 700P 8000L Vacuum Sewage Suction Truck, ISUZU 700P 8CBM Sewage Suction Vehicle, ISUZU 4×2 Municipal Sludge Suction Truck.
Q2: What working scenarios is this truck applicable to?
A2: It is widely used for municipal sewer dredging, septic tank cleaning, river sludge collection, factory wastewater disposal and rural environmental renovation, covering urban and rural sanitation projects.
Q3: What are the core chassis parameters?
A3: Equipped with genuine ISUZU 700P 4×2 chassis, 190HP 4HK1 diesel engine, matched with original MLD-6Q 6-speed manual transmission, 3815mm wheelbase, equipped with factory air conditioner, ABS and air brake system.
Q4: Can we upgrade tank material and accessories?
A4: Yes. We support upgrading to 304 stainless steel tank and tank bottom wear-resistant lining, customized body painting, extended suction hose and auxiliary warning devices.
Q5: What is the advantage compared with ordinary sanitation trucks?
A5: It owns reliable low-failure ISUZU original chassis and larger 8CBM tank capacity, improving operation efficiency. It integrates full sanitation functions with complete safety fittings, requiring low daily maintenance cost, highly cost-effective for overseas bulk sanitation procurement.
Conclusion
ISUZU GIGA 4×2 10CBM Sewage Suction Vacuum Truck is a high-reliability sanitation vehicle customized for global medium and large-scale sewage disposal projects. Equipped with authentic ISUZU GIGA chassis and high-performance vacuum suction system, it integrates sewage suction, sealed transportation and hydraulic automatic discharging functions.
Benefiting from large-capacity 10CBM anti-corrosion tank, labor-saving dual-control hydraulic system and complete safety devices, this vehicle solves low efficiency, high breakdown and leakage defects of traditional sanitation equipment. With fuel economy, easy maintenance and stable comprehensive performance, it adapts to complicated overseas road conditions and various working scenarios, becoming the preferred sanitation equipment for global municipal governments and engineering contractors.
